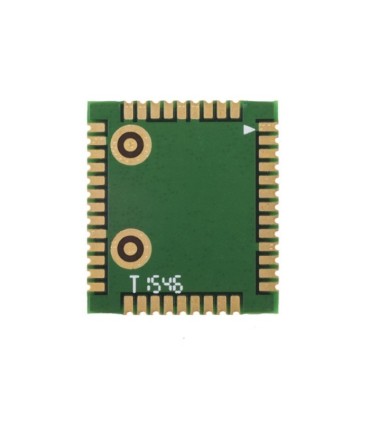

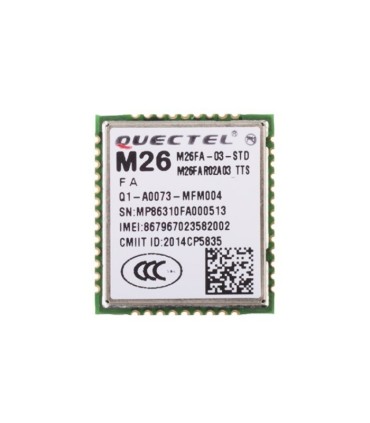

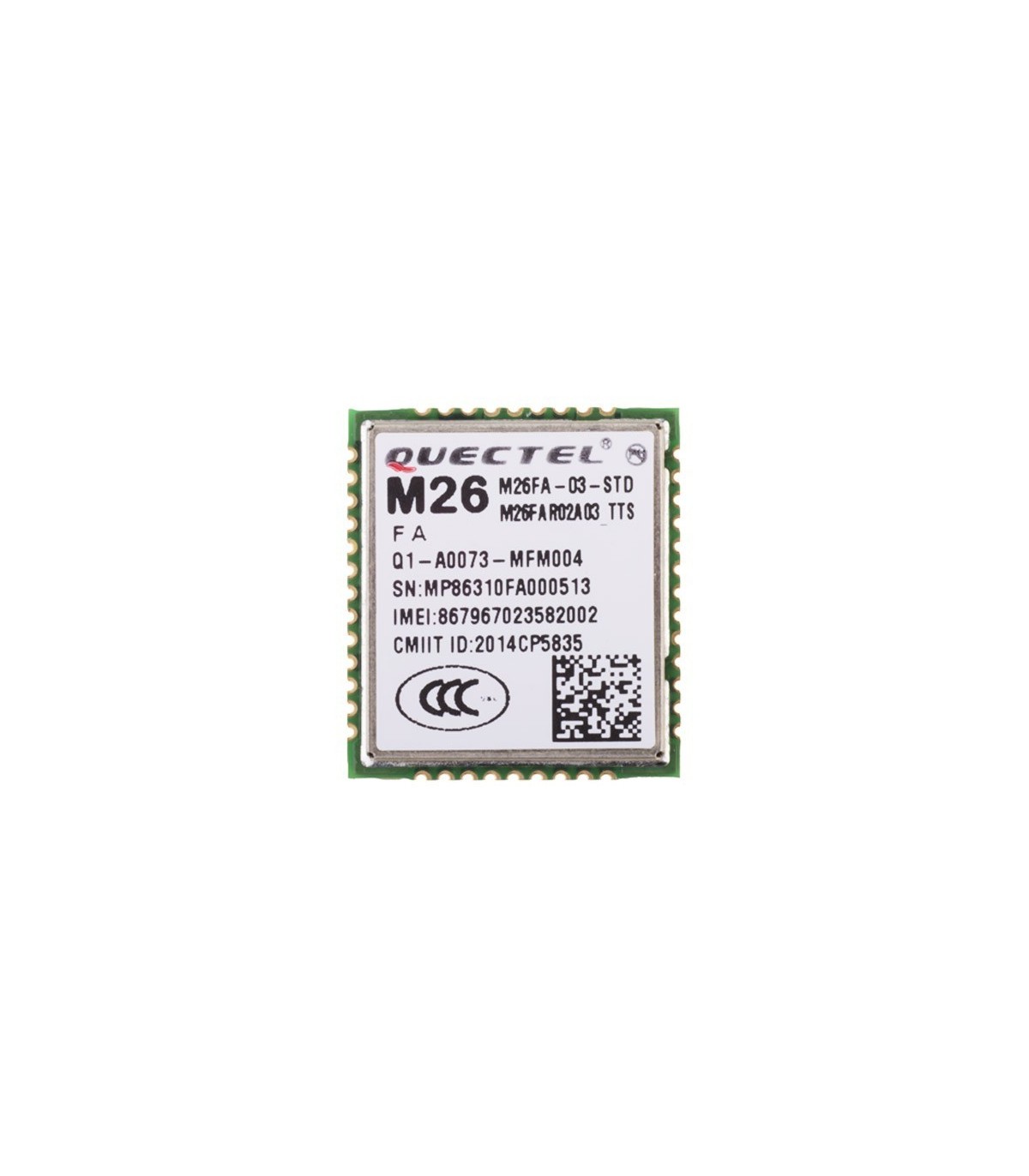

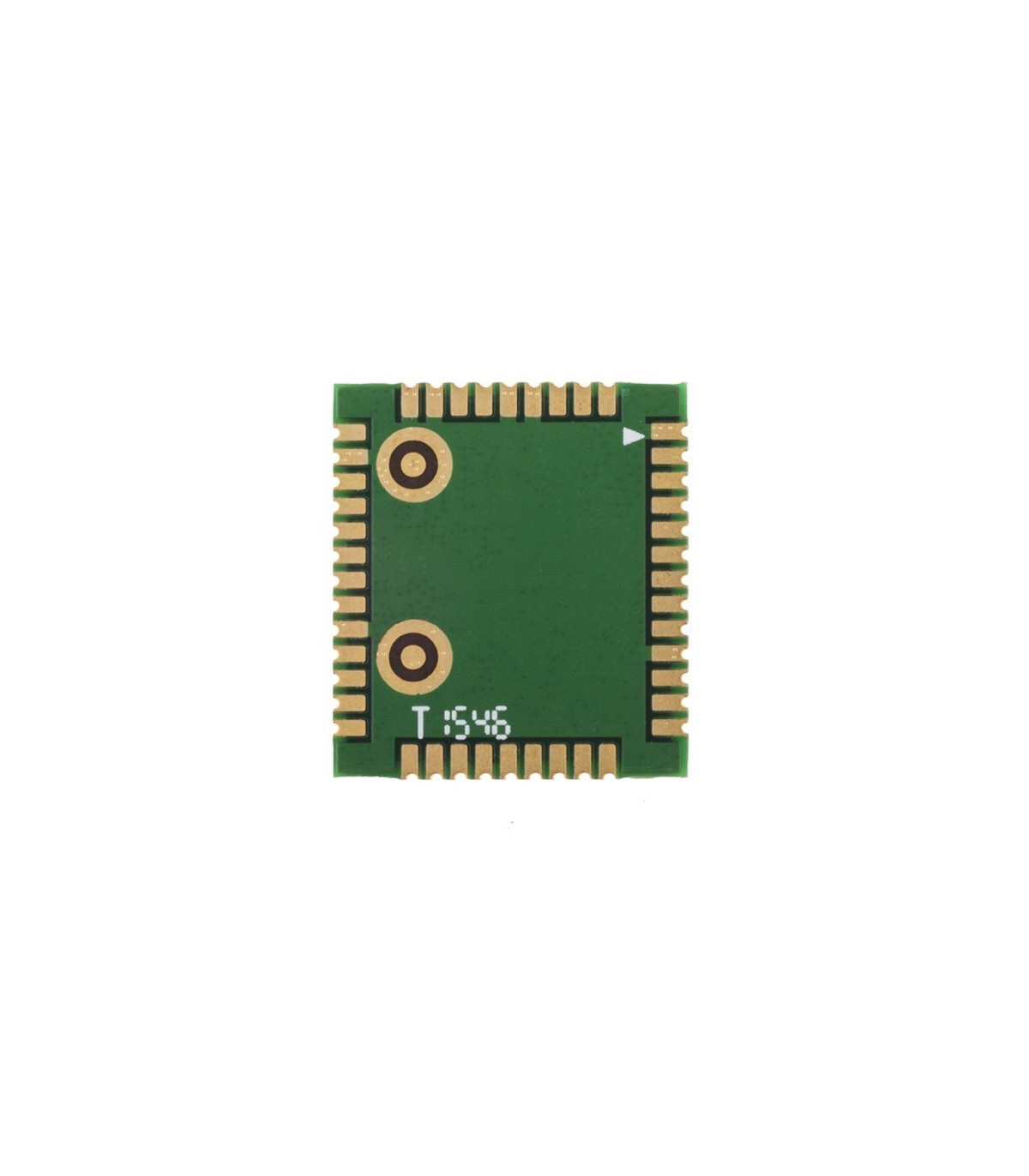

GSM/GPRS M26

M26 is the world's smallest quad-band LCC package GSM / GPRS module, the size is only 15.8 × 17.7 × 2.3mm, to maximize the end product to meet the needs of small size module products, effectively help customers reduce product size and optimize product costs.

The M26 is available in a LCC package that is more easily soldered and can be manufactured quickly using standard SMT equipment, providing customers with a highly reliable connection, particularly suited for modern, automated, large-scale, low-cost production. At the same time, the LCC package also meets the requirements of manual soldering when the customer makes a small amount of production.

With its ultra-small size, ultra-low power consumption and ultra-wide operating temperature range, the M26 is an ideal solution for M2M applications for automotive, wearable, industrial PDA, personal tracking, wireless POS, smart metering and other M2M Applications, to provide comprehensive text messaging, data transmission and voice services.

Advantage

● The world's smallest quad-band LCC package GSM / GPRS module

● Standby current as low as 1.3mA

● Support audio function

● Bluetooth support

● QuecFOTA upgrade is supported

● Embedded network service protocol stack, support multiple Socket and IP address

● Product design is simple, to meet the requirements of customers to market quickly

Key Features
 Quadratic frequency 850/900/1800/1900 MHz
 Multi - slot Class
 GPRS mobile station Class B

Compatible with GSM Phase 2/2 +
Class 4 (2W @ 850/900 MHz)
Class 1 (1W @ 1800 / 1900MHz)
 Supply voltage 3.3 ~ 4.6V typical 4.0V

Consumption flow
1.3 mA @ DRX = 5
1.2 mA @ DRX = 9
 Operating temperature -40 ° C to +85 ° C
 Dimensions 15.8 x 17.7 x 2.3 mm
 Weight about 1.3g
 AT commands control GSM 07.07, 07.05 and other AT extended instructions
 SIM Application Toolkit
 In this case,
data transmission
 GPRS Class 12 Up to 85.6 kbps (uplink & downlink)
 Support PBCCH
 Coding schemes CS 1, 2, 3, 4
 Support for USSD
 Protocol stack TCP / UDP / PPP / FTP / HTTP / SMTP / CMUX / SSL
 In this case,
SMS
 Point to point messaging
 Text / PDU mode
 In this case,
voice
 Speech Coding Mode Half Rate (HR)
Full Rate (FR)
Enhanced Full Rate (EFR)
AMR Half Rate
AMR Full Rate
 Audio processing mechanism echo cancellation
Echo suppression
Noise suppression
 In this case,
interface
 SIM / USIM card 3V / 1.8V
 UART 3 way
 Analog audio interface 2 outputs + 1 input
 Digital audio interface 1 Road
 RTC 1 way
 Bluetooth support 3.0 specification
Profile: SPP
 Antenna 2 Road (1 way for the GSM antenna,
1 for the Bluetooth antenna)
