GSM Yagi Antenna,8dBi,824-960MHz,SMA

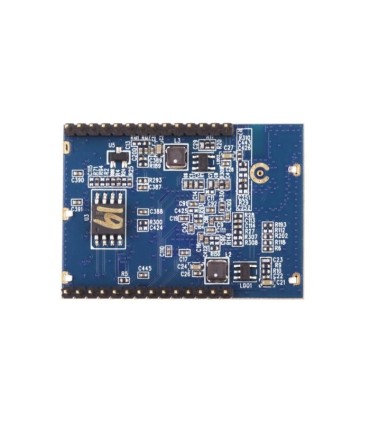

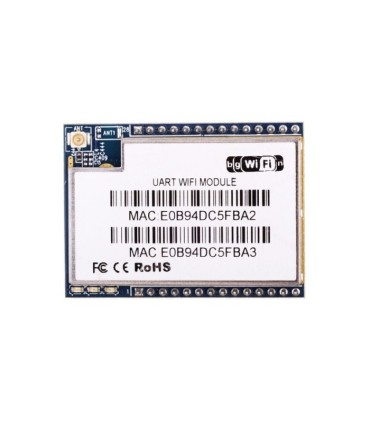

ماژول WIFI HLK-RM04
کد محصول:
190107002
ماژول سریال به اترنت / WIFI
HLK-RM04
0 ریال
بدون مالیات
علاقهمندی0
افزودن به لیست علاقهمندیها
افزودن به مقایسه0

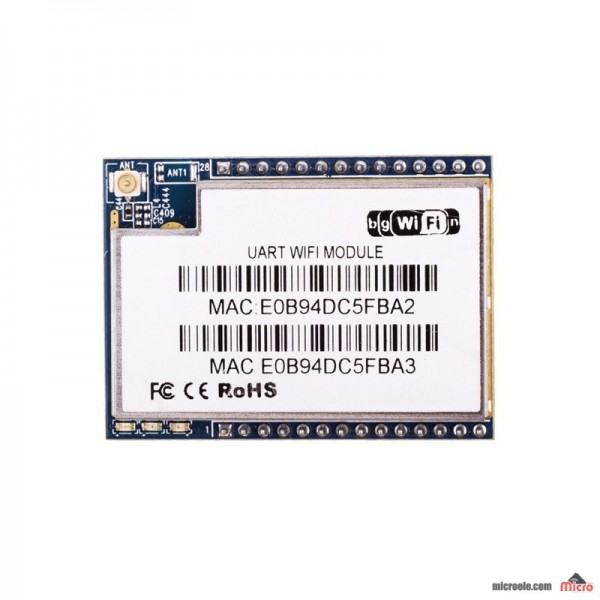

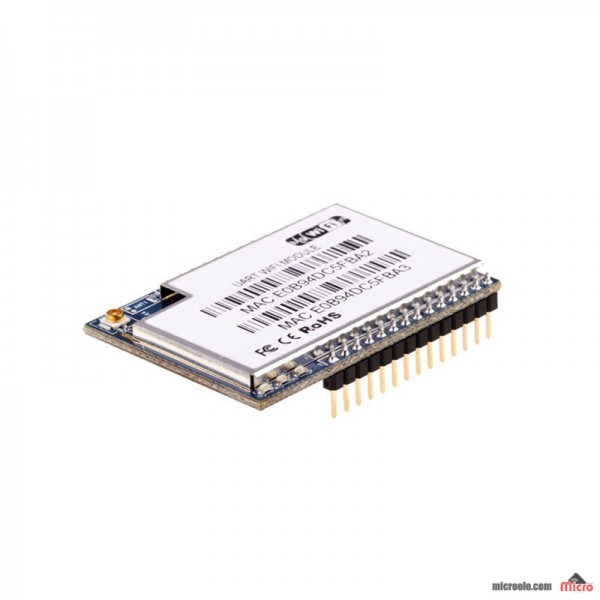

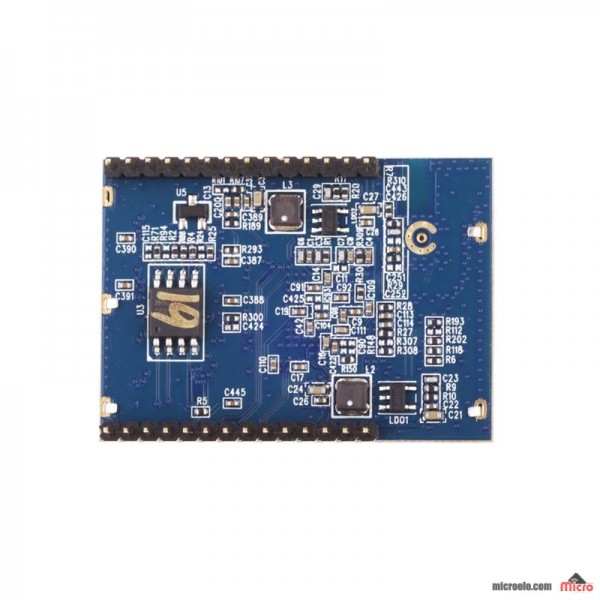

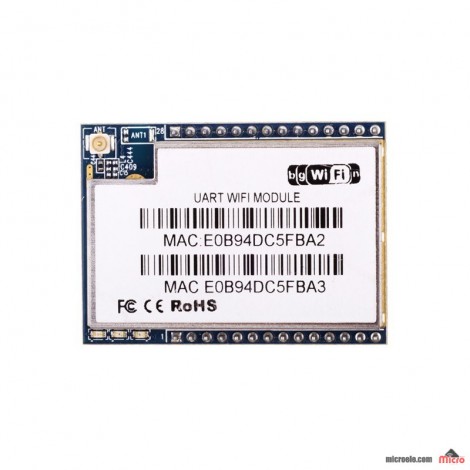

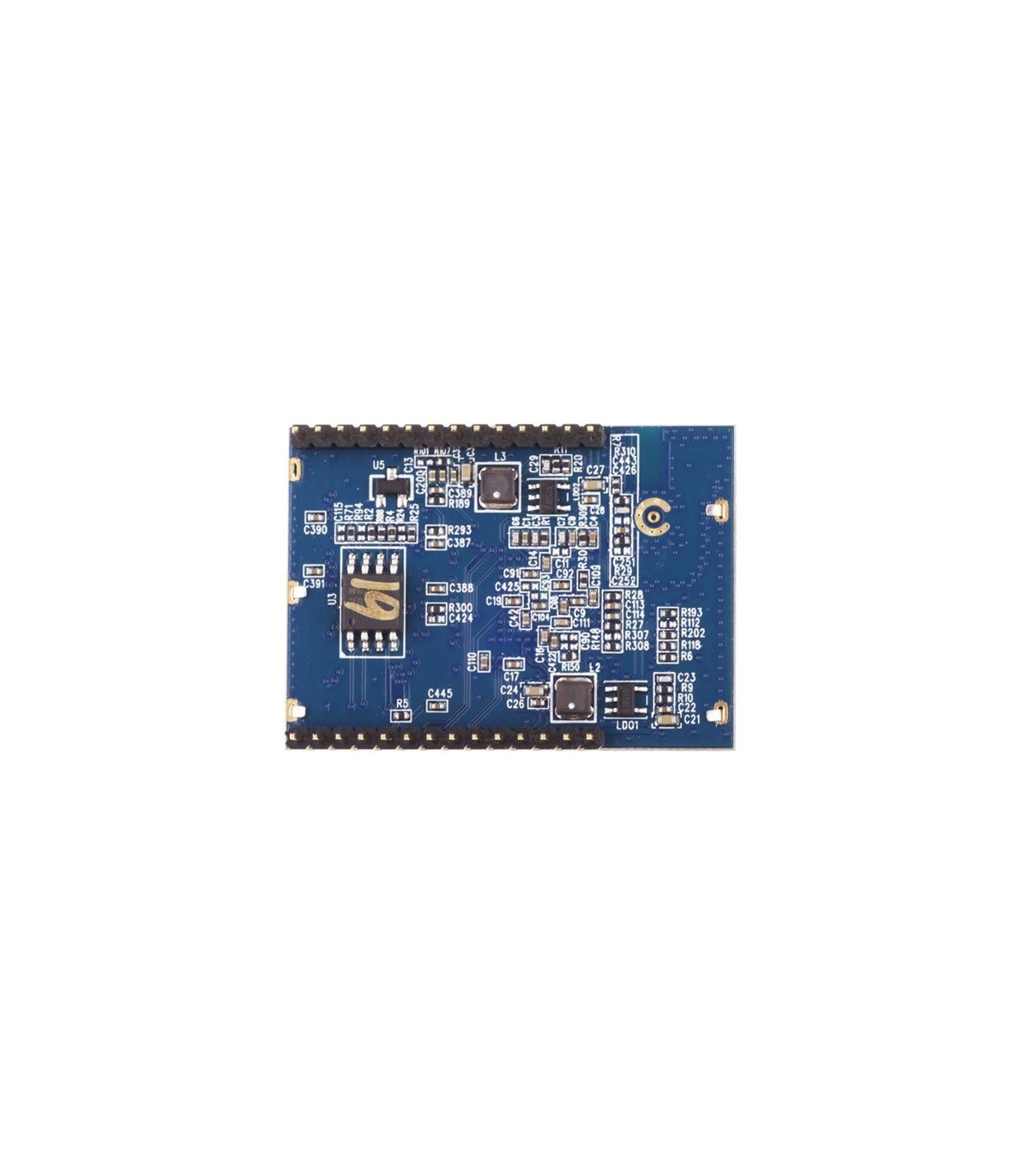

ماژول سریال به اترنت / WIFI
HLK-RM04
این ماژول یک ماژول اترنت / وای فای می باشد که از طریق پروتکل ارتباطی سریال قابل استفاده می باشد .

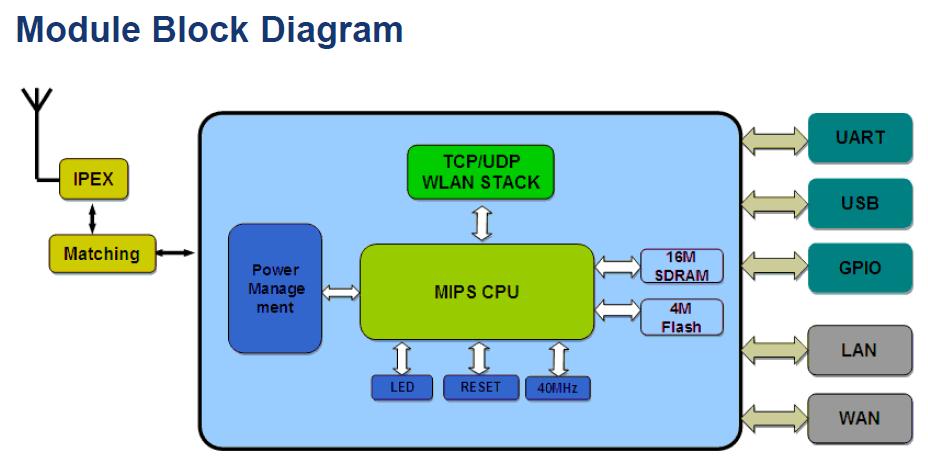

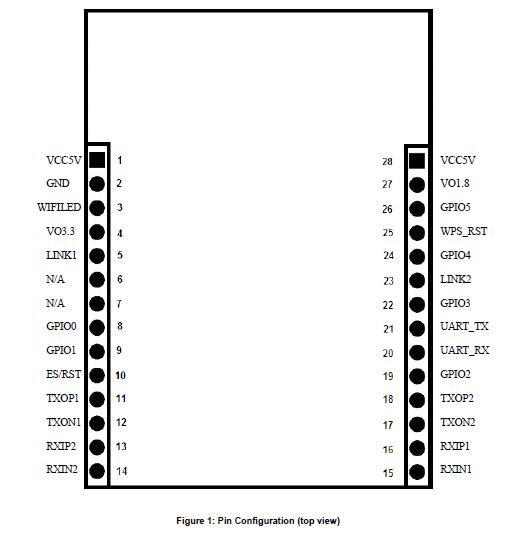

HLK-RM04 has 4M flash and 16M SDRAM on-package, 1 USB port, 2 UART ports (lite and full), 1 I2C, 2 GPIO (GPIO0, RIN), and 2 Ethernet ports (LAN and WAN). In different configurations, you can get different numbers of GPIO pins (for example 8 GPIOs + 1 serial port).
-رنج فرکانس کاری 2.4 ~2.4835
سریال بادریت 50 ~ 230400
-Wifi Client /AP/Router Mode
-Support multiple network protocols:
- PPPEO/TCP/UDP/DDDNS/DHCP/DNS/HTTP/Firewre
-Support AT + instruction set
-Support two config methods : Serial /WEB
|
Network standard |
wireless:IEEE 802.11n,IEEE 802.11g,IEEE 802.11b |
|
wired:IEEE 802.3,IEEE 802.3u |
|
|
Wireless transmission rate |
11n: maximum up to 150Mbps |
|
Tracks number |
1-14 |
|
Frequency range |
2.4-2.4835G |
|
Emission power |
12-15DBM |
|
Interface |
one 10/100Mbps LAN/WAN multiplex interface |
|
Antenna |
|
|
Antenna type |
Onboard antenna / External Antenna
|
|
Functional Parameters |
|
|
WIFI work mode |
Client/AP/Router |
|
WDS Function |
Support WDS wireless bridge connection |
|
Wireless security |
Wireless MAC address filtering |
|
Wireless security function switch |
|
|
64/128/152 bit WEP encryption |
|
|
WPA-PSK/WPA2-PSK,WPA/WPA2 security mechanism |
|
|
Network management |
Remote Web management |
|
Configuration file import and export |
|
|
WEB software upgrade |
|
|
Serial to Network |
|
|
Maximum transmission rate |
230400bps |
|
TCP connection |
Max connection number>20 |
|
UDP connection |
Max connection number>20 |
|
Serial baud rate |
50~230400bps |
|
Other Parameters |
|
|
Status indicator |
Status indicator |
|
Environmental standard |
Operating temperature:-20-70℃ |
|
Operating humidity:10%-90%RH(No condensation) |
|
|
Storage temperature:-40-80℃ |
|
|
Storage humidity:5%-90%RH(No condensation) |
|
|
Additional properties |
Frequency bandwidth optional:20MHz,40MHz,automatic |
|
Network standard |
wireless:IEEE 802.11n,IEEE 802.11g,IEEE 802.11b |
|
wired:IEEE 802.3,IEEE 802.3u |
|
|
Wireless transmission rate |
11n: maximum up to 150Mbps |
|
Tracks number |
1-14 |
|
Frequency range |
2.4-2.4835G |
|
Emission power |
12-15DBM |
|
Interface |
one 10/100Mbps LAN/WAN multiplex interface |
|
Antenna |
|
|
Antenna type |
Onboard antenna / External Antenna
|
|
Functional Parameters |
|
|
WIFI work mode |
Client/AP/Router |
|
WDS Function |
Support WDS wireless bridge connection |
|
Wireless security |
Wireless MAC address filtering |
|
Wireless security function switch |
|
|
64/128/152 bit WEP encryption |
|
|
WPA-PSK/WPA2-PSK,WPA/WPA2 security mechanism |
|
|
Network management |
Remote Web management |
|
Configuration file import and export |
|
|
WEB software upgrade |
|
|
Serial to Network |
|
|
Maximum transmission rate |
230400bps |
|
TCP connection |
Max connection number>20 |
|
UDP connection |
Max connection number>20 |
|
Serial baud rate |
50~230400bps |
|
Other Parameters |
|
|
Status indicator |
Status indicator |
|
Environmental standard |
Operating temperature:-20-70℃ |
|
Operating humidity:10%-90%RH(No condensation) |
|
|
Storage temperature:-40-80℃ |
|
|
Storage humidity:5%-90%RH(No condensation) |
|
|
Additional properties |
Frequency bandwidth optional:20MHz,40MHz,automatic |
