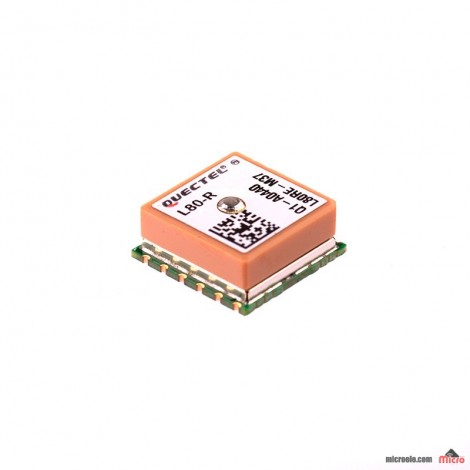

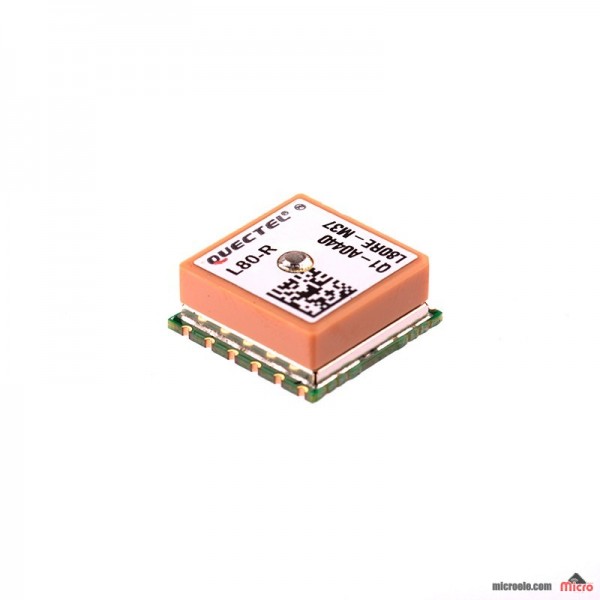

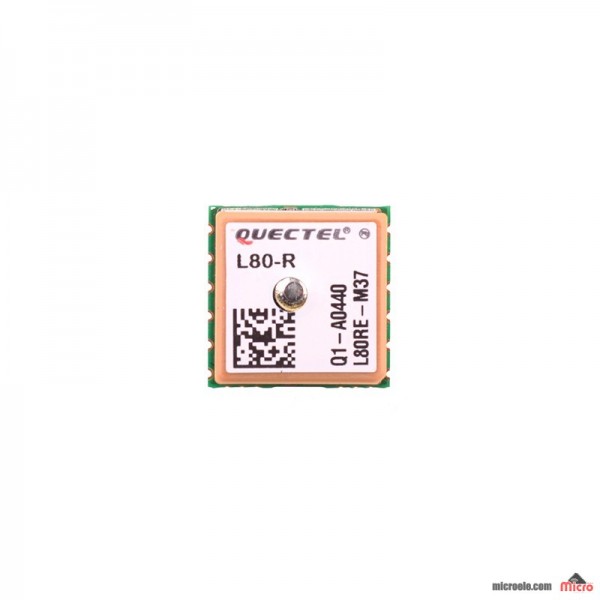

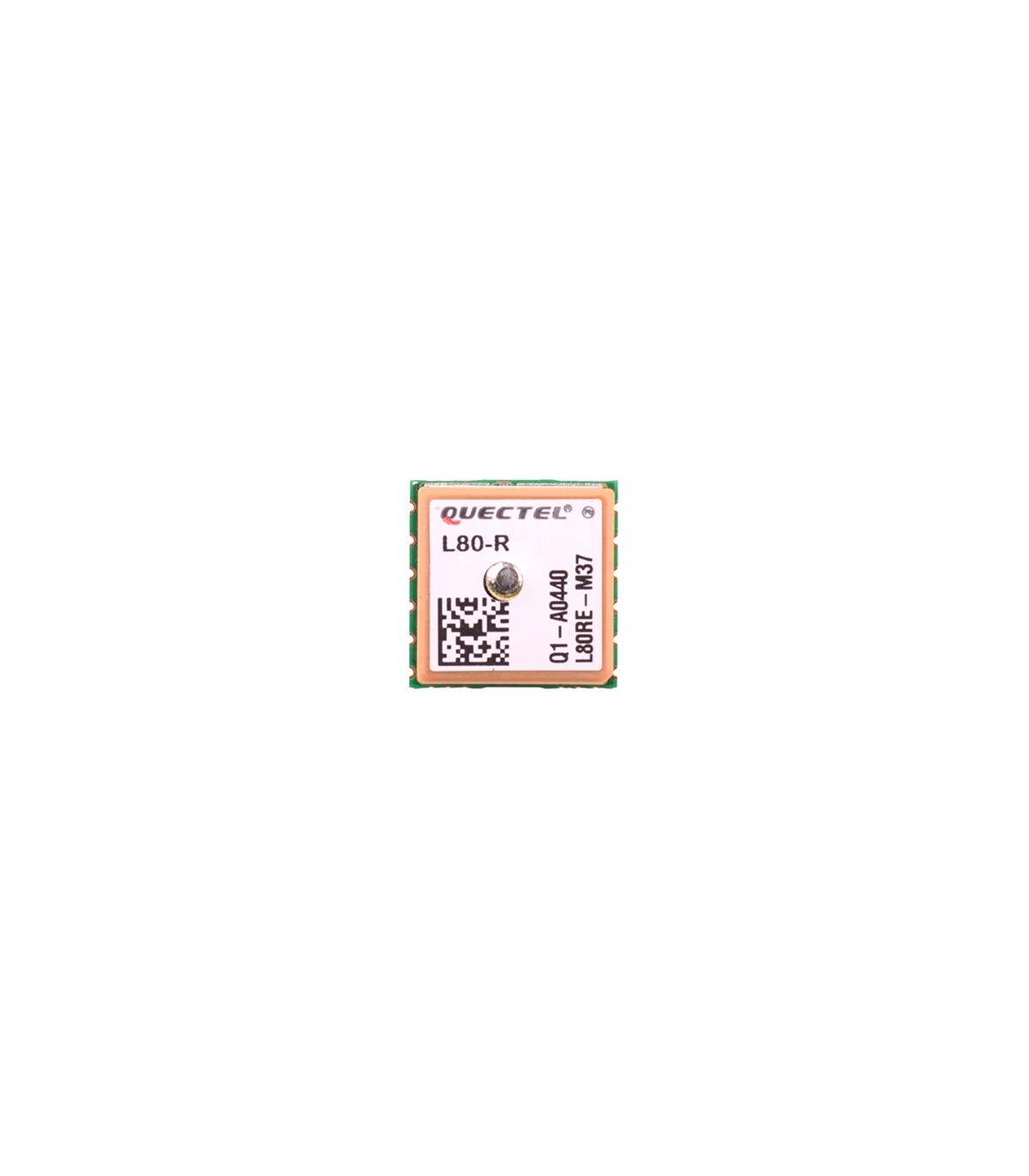

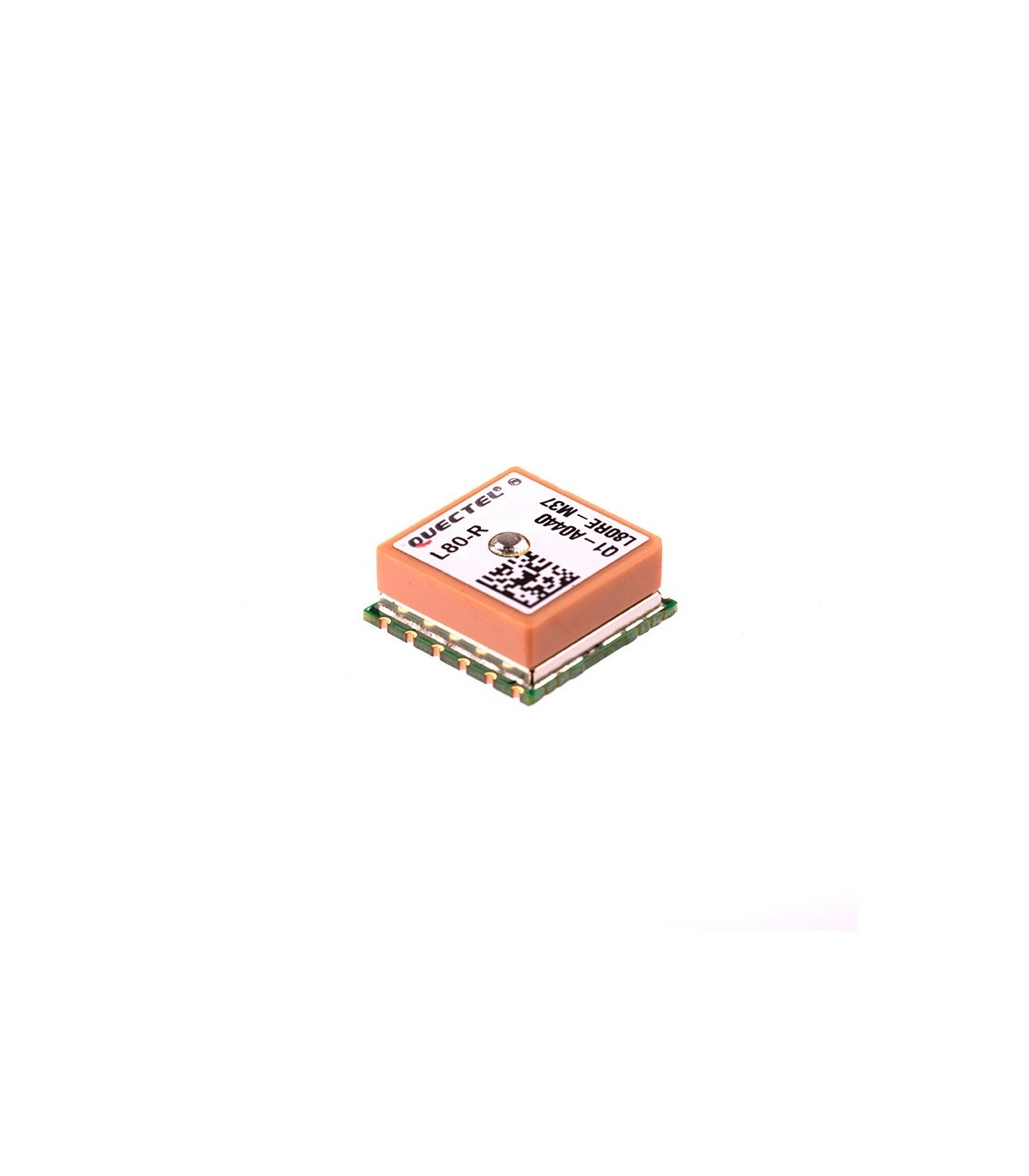

ماژول GPS L80-R

L80-R یک ماژول فوق العاده جمع و جور از نوع  GPS POT می باشد که برروی آن آنتنی با ابعاد  mm15*15*4  وجود دارد. این ماژول به دلیل ابعاد بهترین انتخاب برای طراحی می باشد و با توجه به وجود آنتن دارای بهترین عملکرد در ردیابی می باشد

L80-R is an ultra compact GPS POT (Patch on Top) module with an embedded 15.0mm × 15.0mm × 4.0mm patch antenna. This space-saving design makes L80-R the perfect module for the miniature devices. Adopted by LCC package and integrated with patch antenna, L80-R has exceptional performance both in acquisition and tracking.

Combining advanced AGPS called EASY™ (Embedded Assist System) technology, L80-R achieves the highest performance and fully meets the industrial standard. EASY™ technology ensures L80-R can calculate and predict orbits automatically using the ephemeris data (up to 3 days) stored in internal RAM memory, so L80-R can fix position quickly even at indoor signal levels with low power consumption.

With its compact design, high precision and sensitivity, L80-R is perfectly suitable for a broad range of M2M applications such as portable device, automotive, personal tracking, security and industrial PDA, especially suitable for special applications, like GPS mouse and OBD.

Key Benefits

 Embedded patch antenna: 15.0mm x 15.0mm x 4.0mm*

 Extremely compact size: 16.0mm x 16.0mm x 6.45mm*

 Cost efficient for ROM-based version*

 Built-in LNA for better sensitivity*

 EASY™, advanced AGPS technology without external memory*

 Ultra low power consumption in tracking mode, 20mA*

 High sensitivity: 165dBm@Tracking, -148dBm@Acquisition*

66 acquisition channels, 22 tracking channels*

 Support QZSS*

 Balloon mode, for high altitude up to 80km*

 PPS VS. NMEA can be used in time service*

 Anti-Jamming, Multi-tone Active Interference Canceller*
