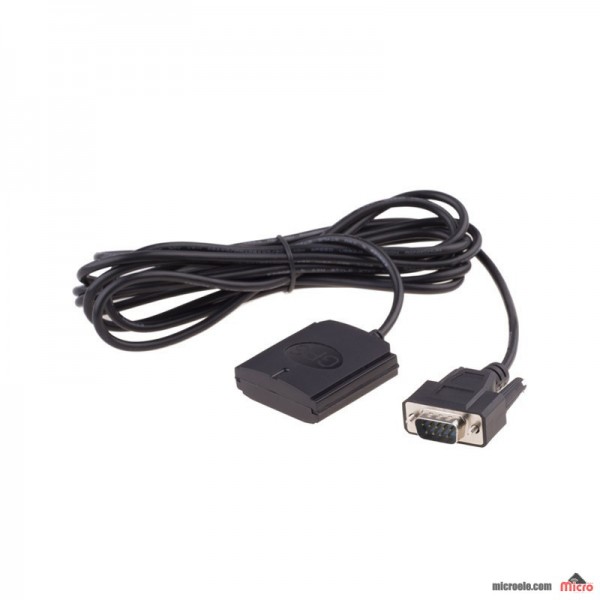

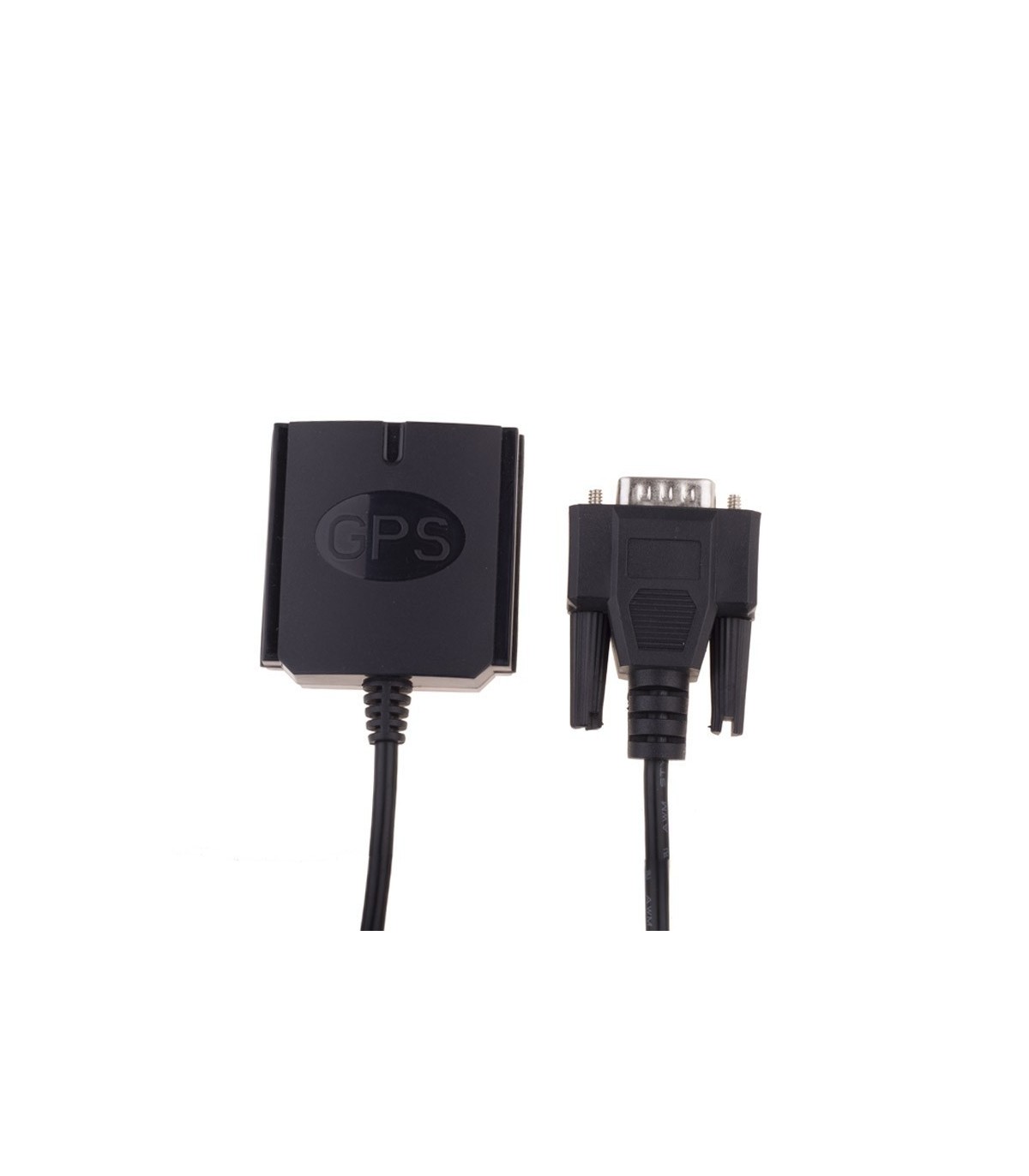

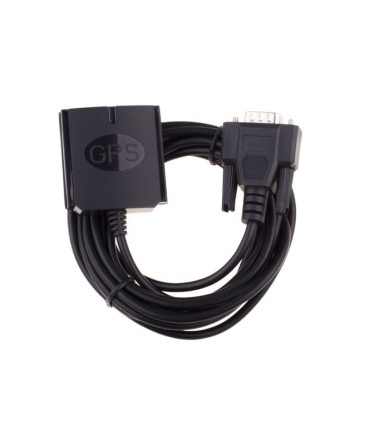

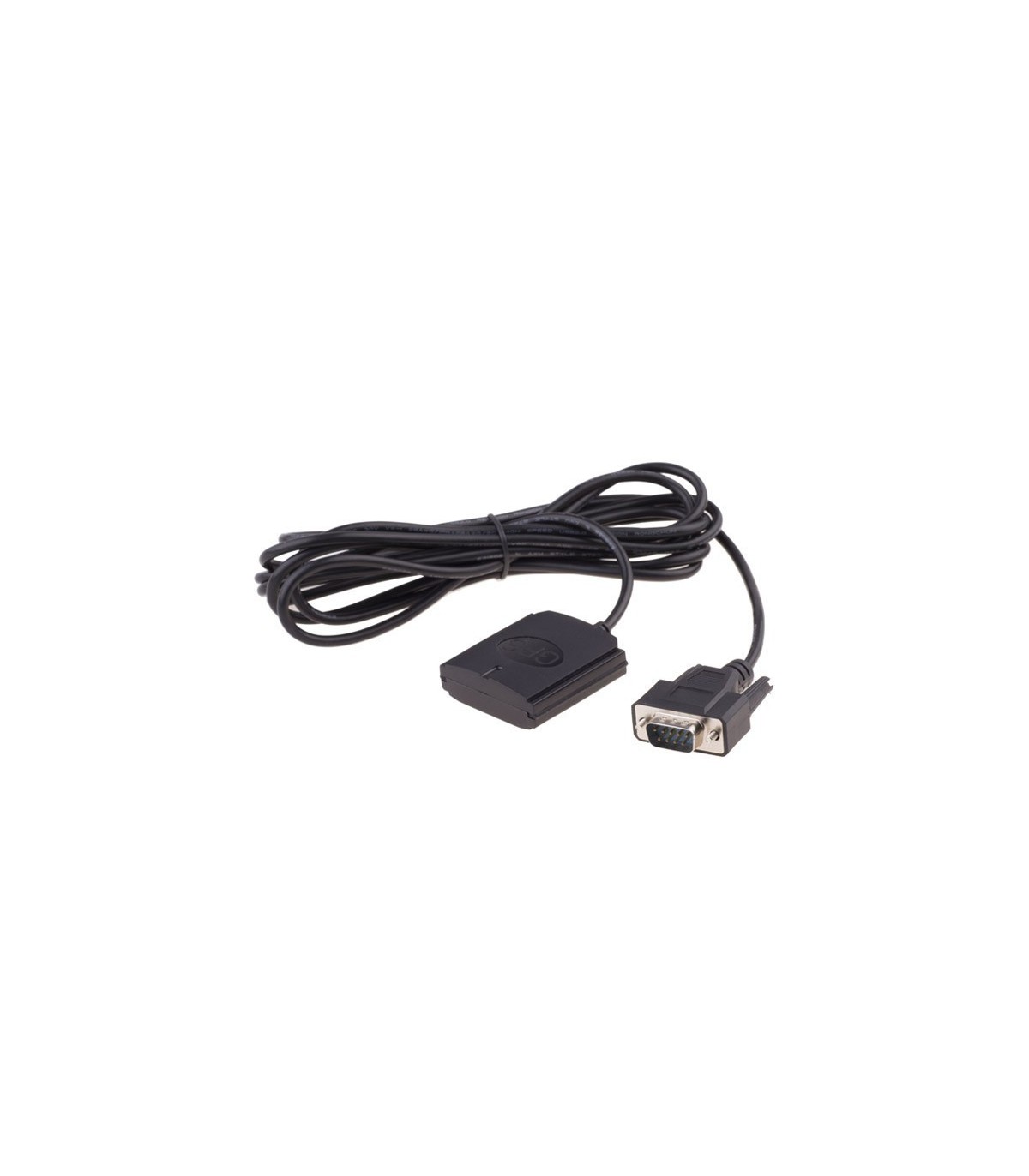

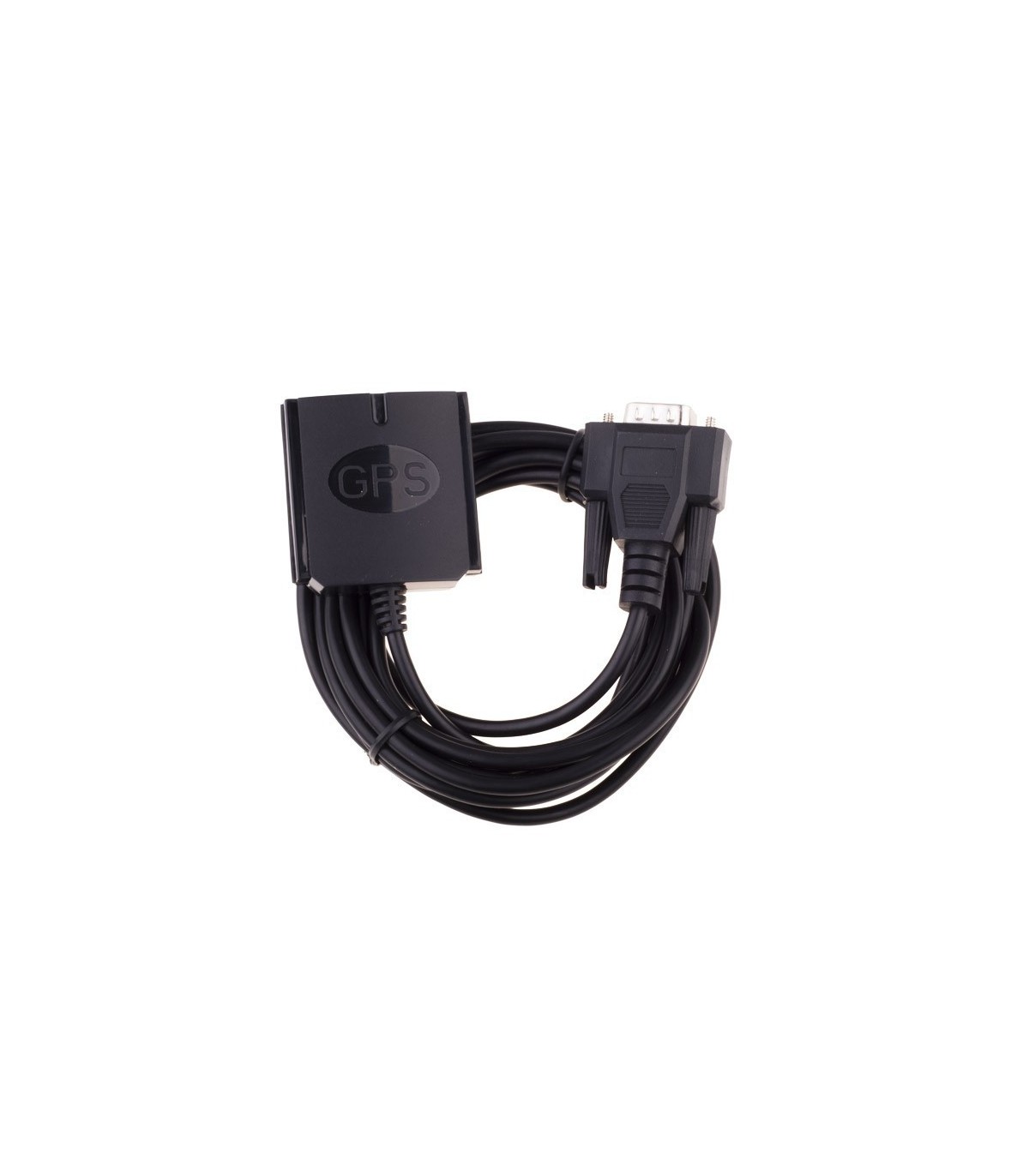

ماژول GPS RS232

ماژول GPS با پورت کام RS232

SKYLAB SKM55RD

General Description The SkyNav SKM55 Series with embedded GPS antenna enables high

performance navigation in the most stringent applications and solid fix even in harsh GPS visibility

environments. It is based on the high performance features of the MediaTek 3329 single-chip

architecture, Its –165dBm tracking sensitivity extends positioning coverage into place like urban

canyons and dense foliage environment where the GPS was not possible before. The UART and USB

connector design is the easiest and convenient solution to communication with other electronic

equipment. Applications • LBS (Location Based Service) • PND (Portable Navigation Device) •

Vehicle navigation system • Mobile phone Features • RS232 Interface with standard DB9 Male

(you can convert to TTL for microcontroller usingKit.Max232 ) • Ultra high sensitivity: -165dBm •

22 tracking/66 acquisition-channel receiver • WAAS/EGNOS/MSAS/GAGAN support • NMEA

protocols (default speed: 9600bps) • Internal back-up battery • One serial port • Embedded patch

antenna 25 x 25 x 4.0 mm • Operating temperature range: -40 to 85℃ • RoHS compliant (Lead-

free) • Tiny form factor ：46 * 45 * 15mm
