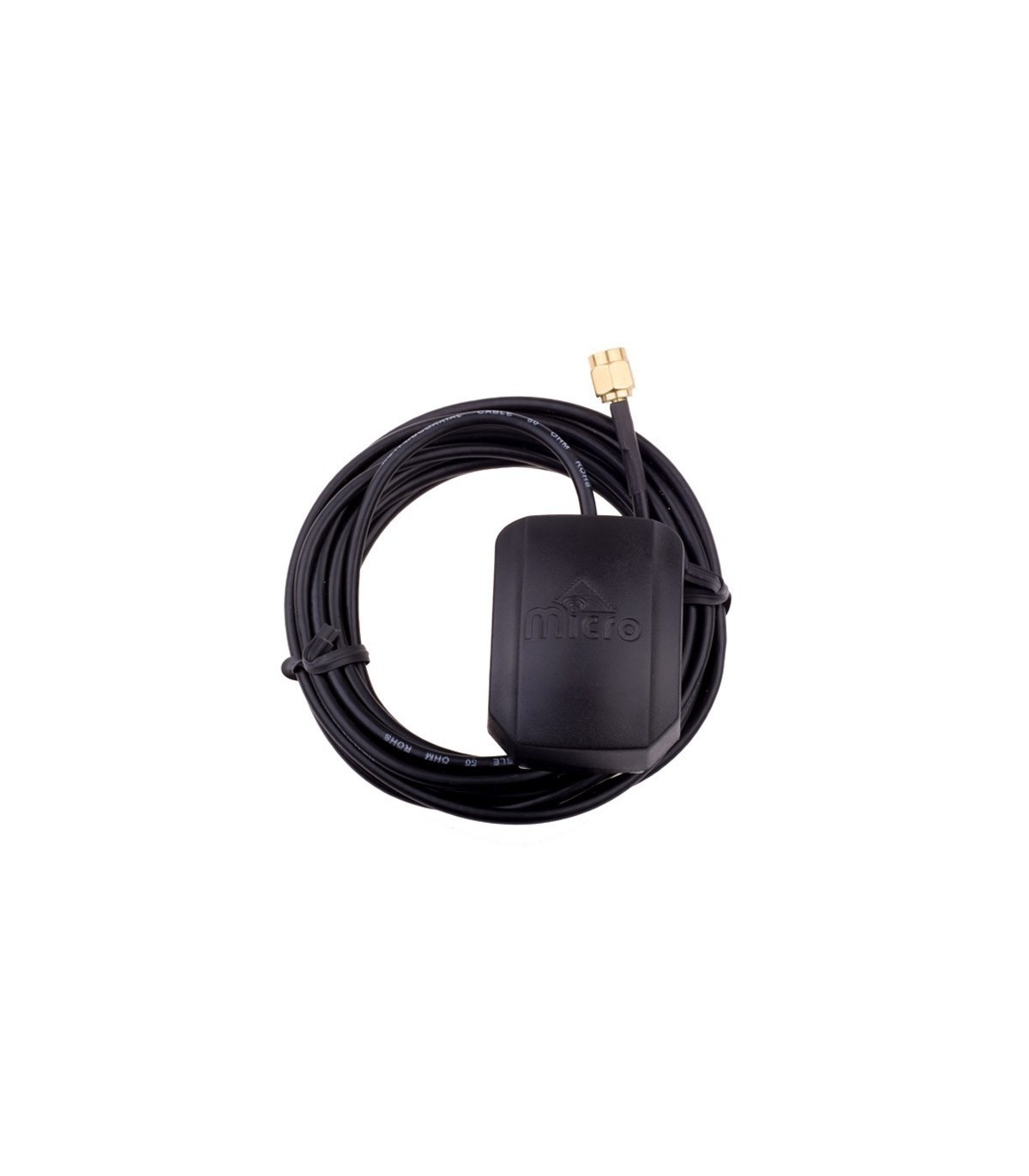

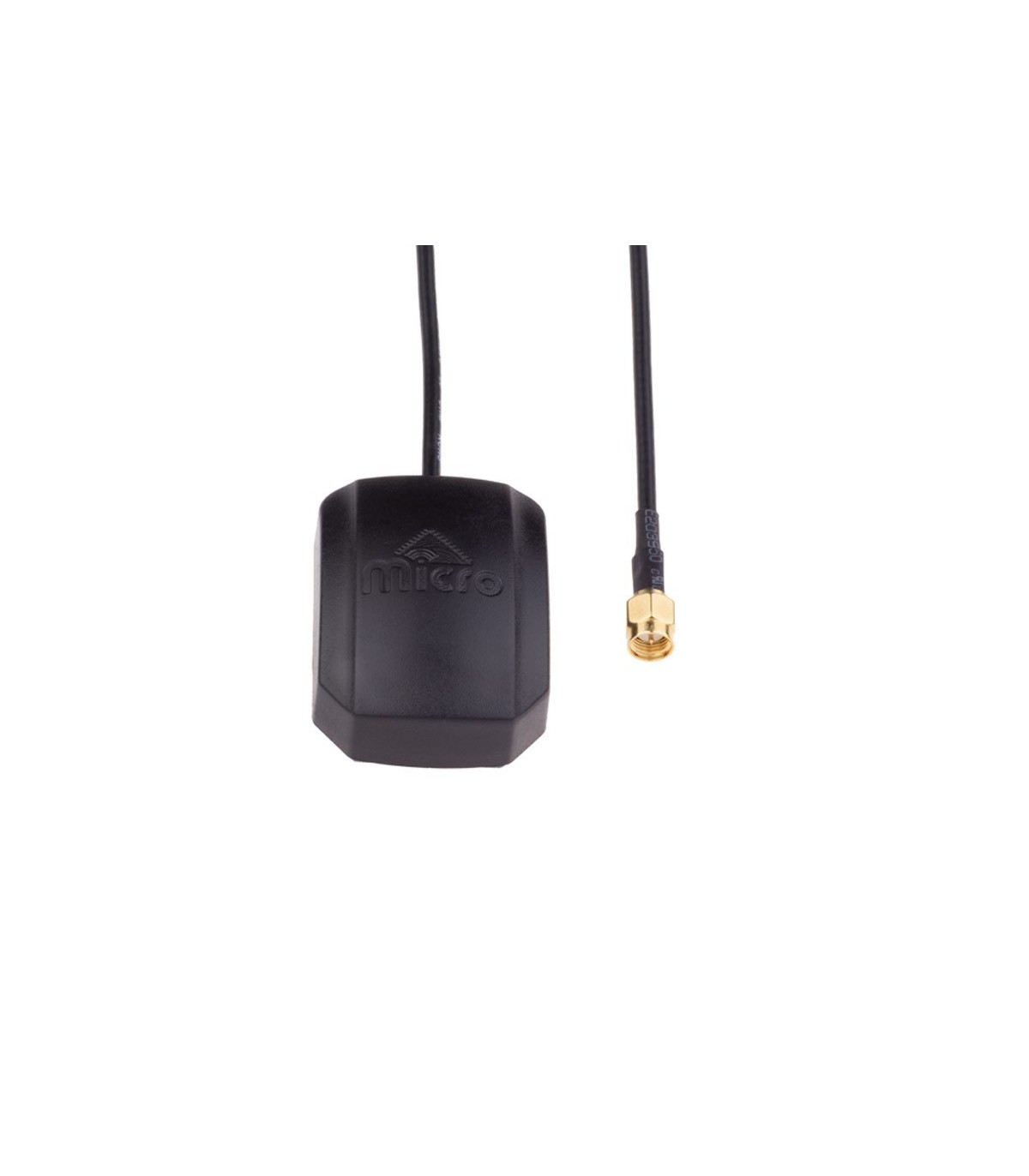

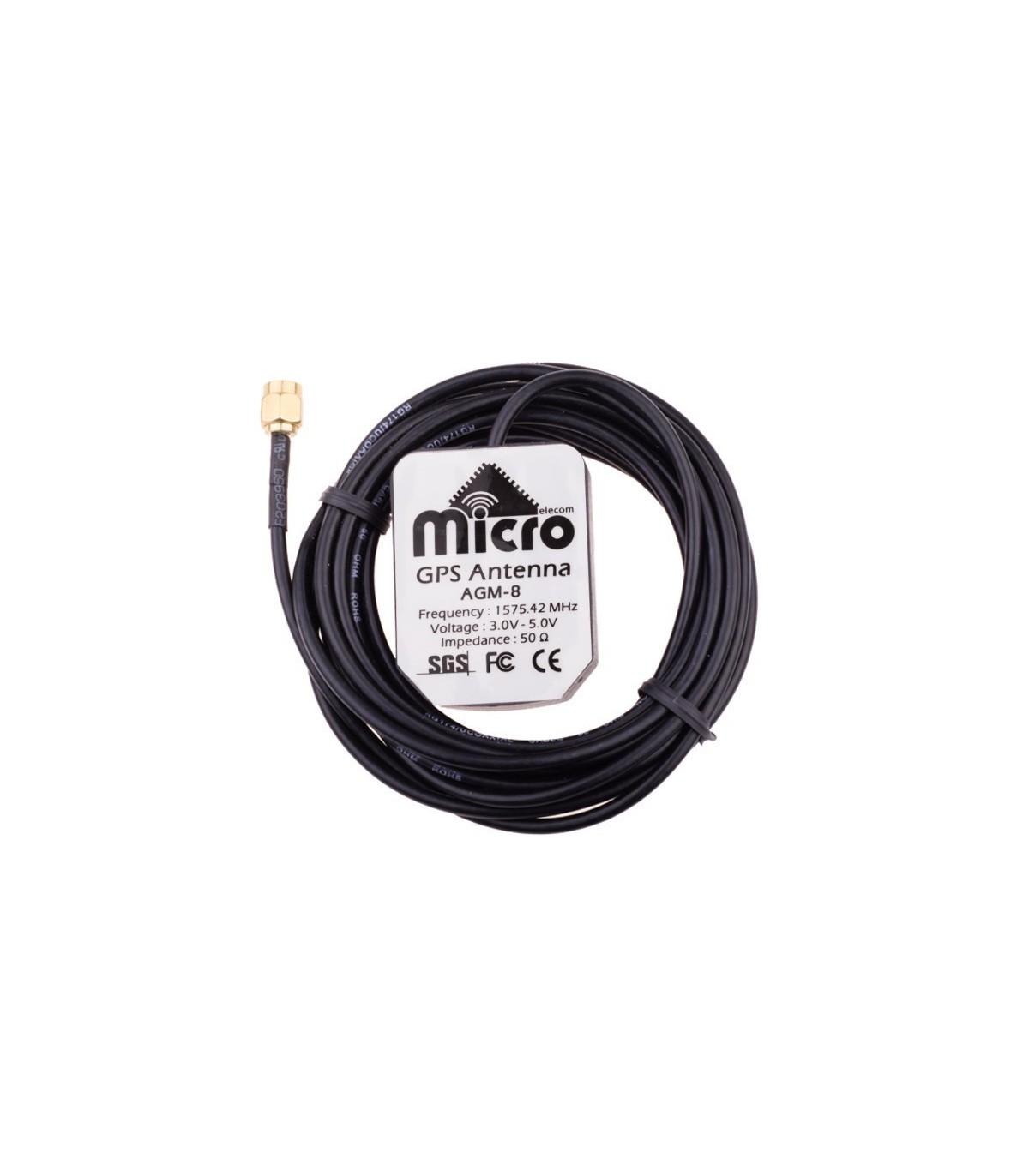

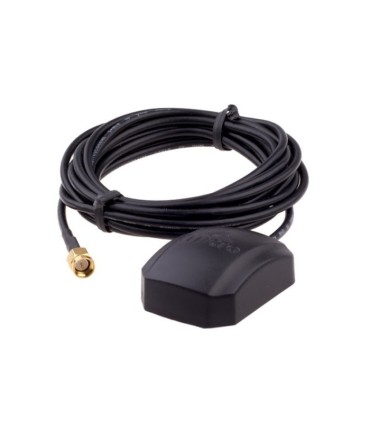

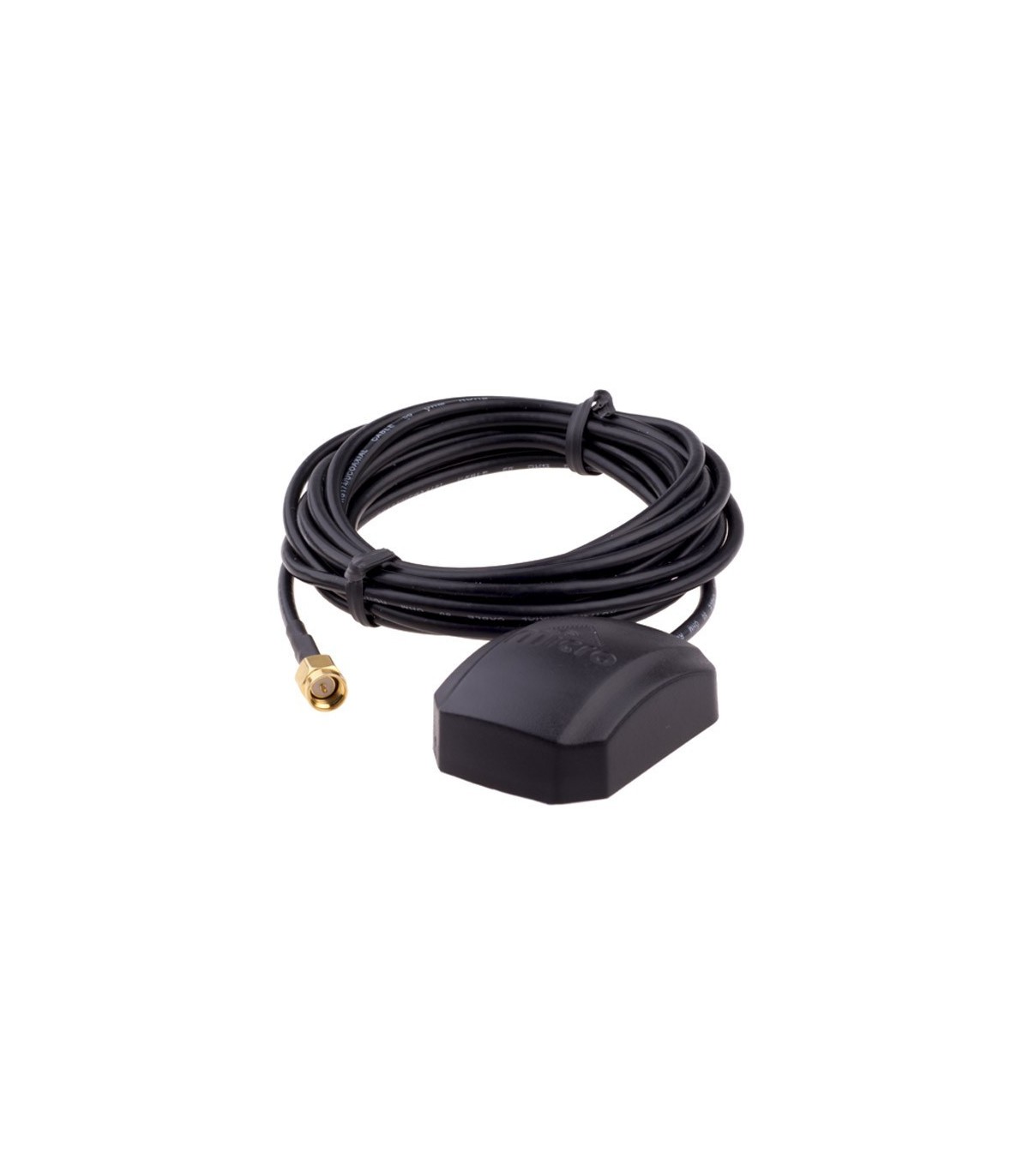

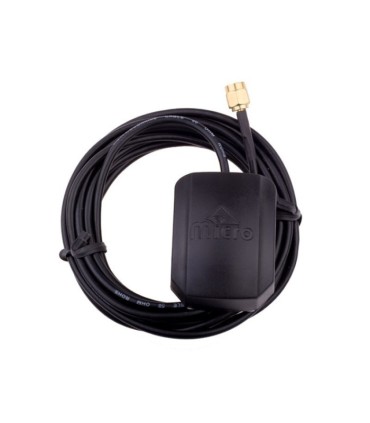

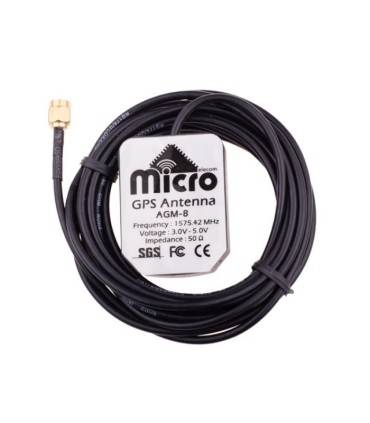

28db,GPS Active Antenna ,SMA,3m Cable
قیمت محصول: 1,490,000 ریال
با خرید این محصول شما 149000
امتیاز وفاداری دریافت میکنید.
مجموع امتیازات شما : 149000
امتیاز
ارزش امتیازات شما :
29,800 ریال.
آنتن GPS
آنتن جی پی اس اکتیو
Electrical Characteristics
1 LNA / Filter
Form 1
No. |
Item |
Specifications |
Post Environmental Tolerance |
1 |
LNA Gain |
28dB |
±1.5 dB |
2 |
Noise Figure |
1.5dB |
— |
3 |
Filter Out Band Attenuation |
14dB Min f0+50MHz |
±1.0 dB |
4 |
DC Voltage |
3-5V |
|
5 |
DC Current |
6-12mA |
2 Mechanical
Form 2
No. |
Item |
Specification |
1 |
Cable |
RG174 3m |
2 |
Connector |
SMA-J |
3 |
Plastic Housing |
Black |
4 |
Mounting |
Magnetic |
3 Reliability
Condition:Temperature: 40±5℃
Load: DC=5V±0.5 V
4 Environmental Specifications
Condition:Post Environmental Tolerance (Refer to the form 1)
Temperature Range 25±3℃
Relative Humidity Range 55~75%RH
Operating Temperature Range -20℃~+85℃
Storage Temperature Range -40℃~+100℃
4.1 Moisture Proof
The device should satisfy the electrical characteristics specified in form 1 after exposed to the temperature 40±2℃ and the relative humidity 90~95% RH for 96 hours and 1~2 hours recovery time under normal condition.
4.2 Vibration Resist
The device should satisfy the electrical characteristics specified in form 1 after applied to the vibration of 10 to 55Hz with amplitude of 1.5mm for 2 hours each in X, Y and Z directions.
4.3 Drop Shock
The device should satisfy the electrical characteristics specified in form 1 after dropping onto the hard wooden board from the height of 30cm for 3 times each facet of the 3 dimensions of the device.
4.4 High Temperature Endurance
The device should satisfy the electrical characteristics specified in form 1 after exposed to temperature 80±5℃ for 24±2 hours and 1~2 hours recovery time under normal temperature.
4.5 Low Temperature Endurance
The device should also satisfy the electrical characteristics specified in form 1 after exposed to the temperature -20℃±5℃ for 24±2 hours and to 2 hours recovery time under normal temperature.
4.6 Temperature Cycle Test
The device should also satisfy the electrical characteristics specified in form 1 after exposed to the low temperature -25℃ and high temperature +85℃ for 30±2 min each by 5 cycles and 1 to 2 hours recovery time under normal temperature.
5 Weatherproof
Put the antennas in 1m deep water for 12h, and find 100% waterproof.
پارت نامبر | AGM-8-3 |
نوع کاربرد | دریافت سیگنال GPS |
نوع | فعال |
شیلد بندی | دارد |
جریان مصرفی | 6-12mA |
ولتاژ کاری | 3.0-5.0V |
باند فرکانسی | 1575.42Mhz |
امپدانس آنتن | 50Ω |
دمای کاری | 20°C ~ 85°C- |
نوع کابل | RG174 |
طول (mm) | 50 |
عرض (mm) | 38 |
ارتفاع (mm) | 50 |
نوع بسته بندی | کیسه پلاستیکی |
تعداد در بسته | 20 |
کارخانه سازنده | مایکروالکام |
کشور سازنده | ایران |
طول کابل | 3M |
