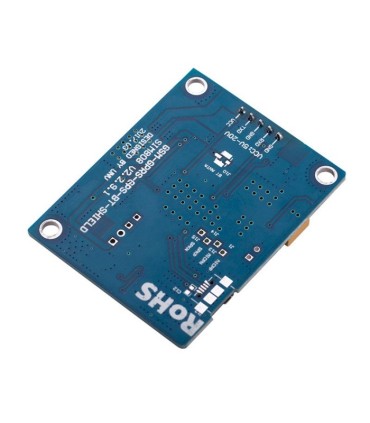

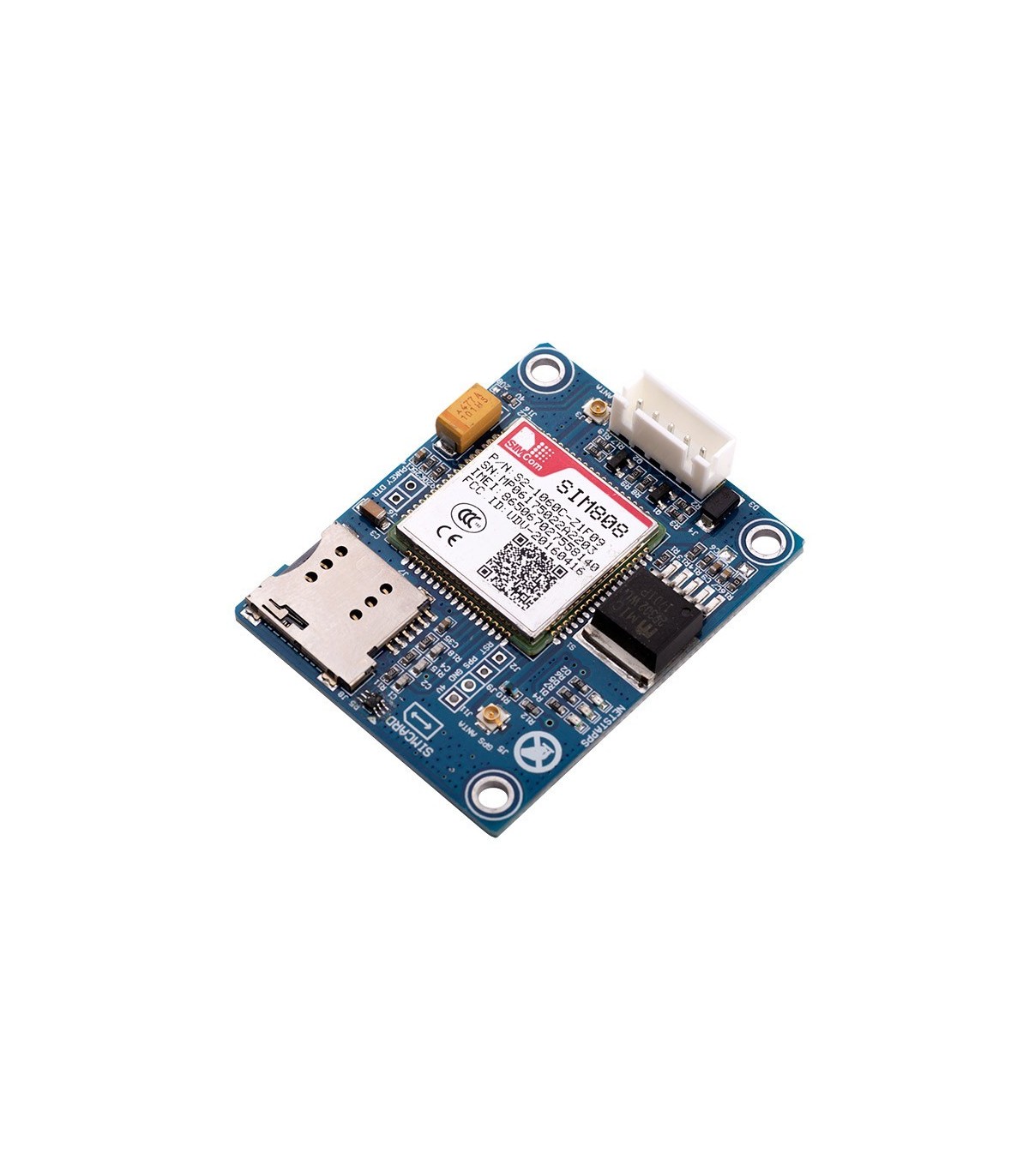

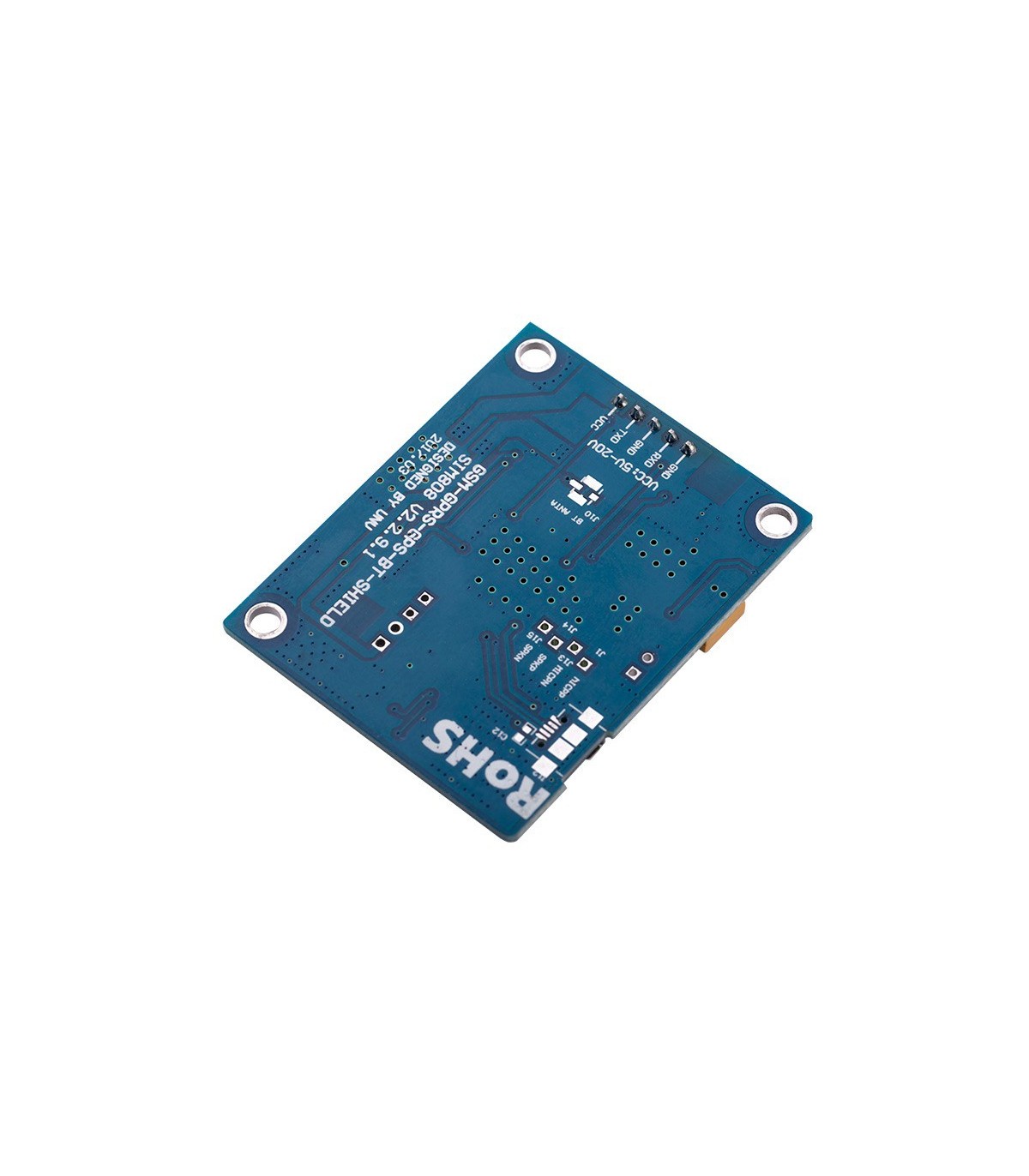

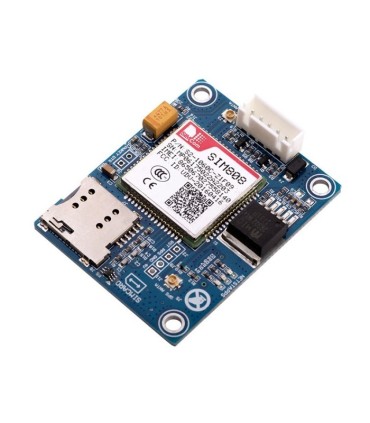

برد راه انداز SIM808 GPS/GPRS

این برد بر اساس  آخرین ورژن SIM808 ساخته شده است و دارای ویژگی GPS و GPRS می باشد

SIM808 module is a GSM and GPS two-in-one function module. It is based on the latest GSM/GPS module SIM808 from SIMCOM, supports GSM/GPRS Quad-Band network and combines GPS technology for satellite navigation.

It features ultra-low power consumption in sleep mode and integrated with charging circuit for Li-Ion batteries, that make it get a super long standby time and convenient for projects that use rechargeable Li-Ion battery. It has high GPS receive sensitivity with 22 tracking and 66 acquisition receiver channels. Besides, it also supports A-GPS that available for indoor localization.

The module is controlled by AT command via UART and supports 3.3V and 5V logical level.

Features:

PCB size: 53 mm X 48mm X 1.6mm

Voltage Input: 5-18V

Quad-band 850/900/1800/1900MHz

GPRS multi-slot class12 connectivity: max. 85.6kbps(down-load/up-load)

GPRS mobile station class B

Controlled by AT Command (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)

Supports charging control for Li-Ion battery

Supports Real Time Clock

Integrated GPS/CNSS and supports A-GPS

Low power consumption, 10mA in sleep mode

Supports GPS NMEA protocol

AT command operation, can support SMS, phone, GPRS data, GPS data is automatically output, embedded TCP protocol to support transparent mode and command mode, supports HTTP protocol to support DTMF decoding, support MMS, support recording function, etc.

Standard SIM Card

Provide program:

1-1 Send a text message in Chinese.

1-2 Send a text message in English.

1-3 Specified calls, automatically hang up after 1 minute.

1-4 Seceived a specified text messages, control LED open circuit.

1-5 Detection module registered to the network, send the message until read a SIM card.

1-6 Connect to the specified server and send the specified data by GPRS.

1-7 Provide information of dormant power consumption at about 10 MA.
