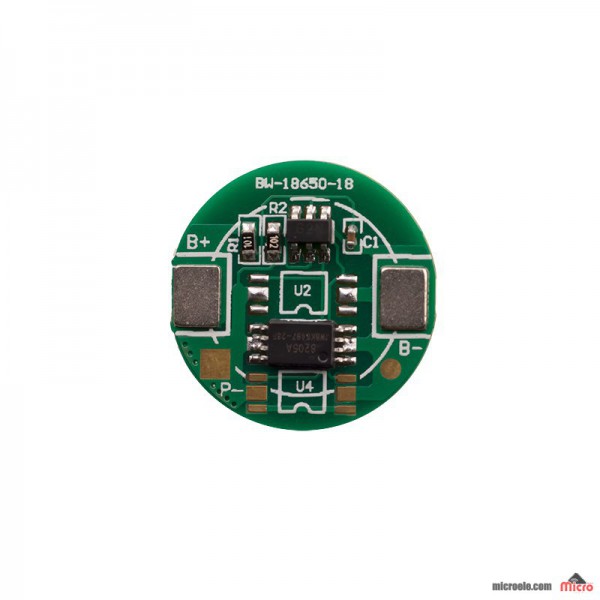

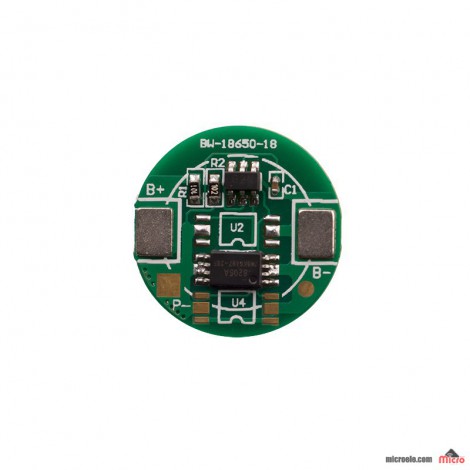

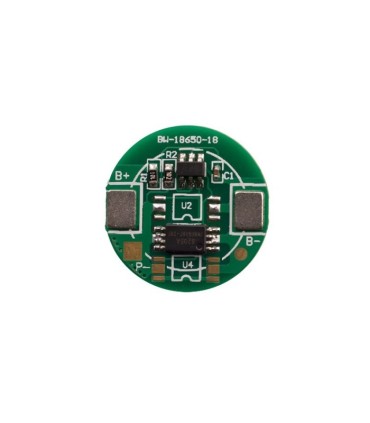

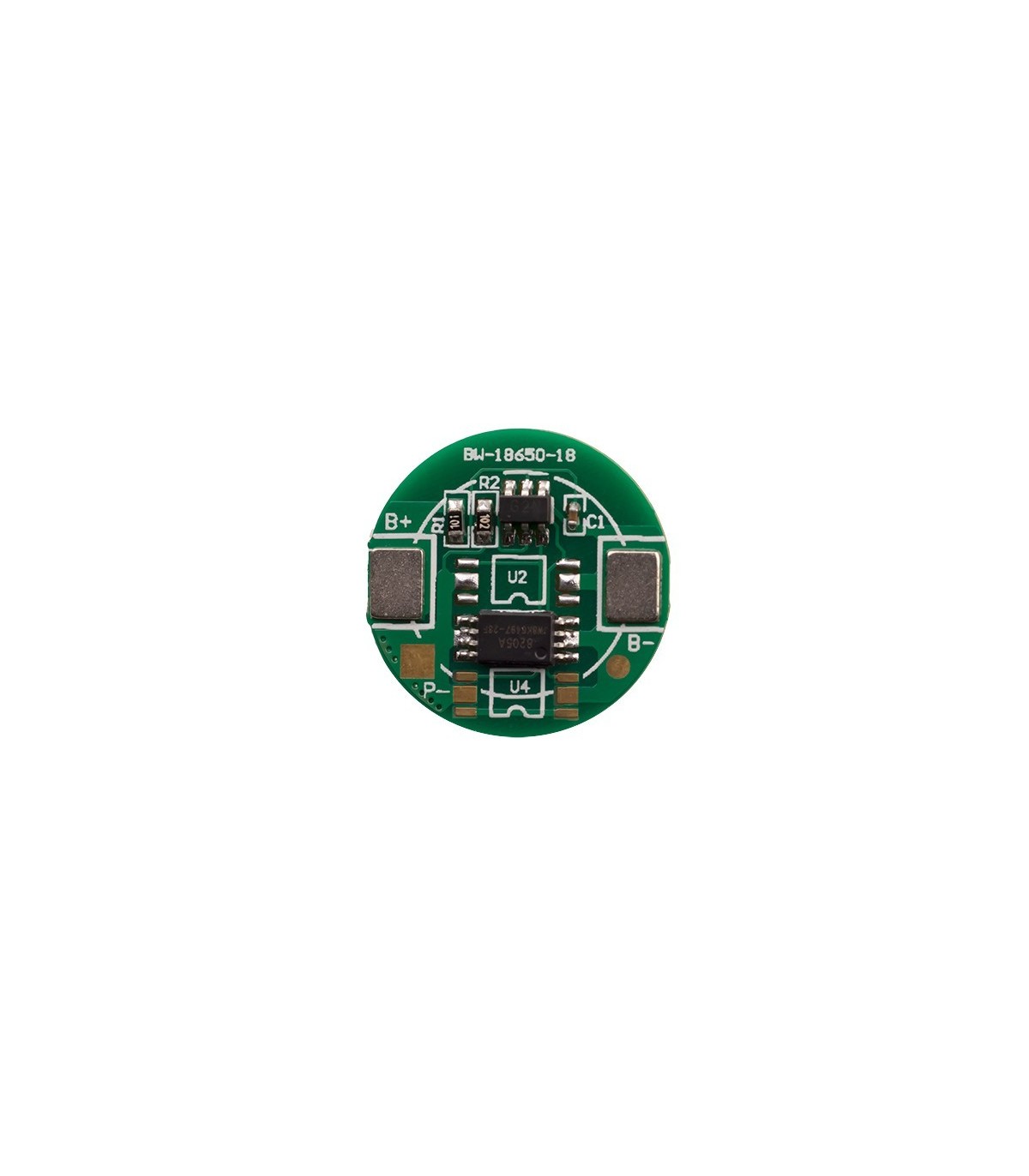

محافظ باطری تک سلول

Type

condition

Item

No

±10V

input Voltage B+ to B-

In put Voltage

1

4.300±0.050V

Detection voltage

Overcharge

2

4.100±0.050V

Release voltage

3

≤200mS

Detection delay time

4

2.400±0.100V

Detection voltage

Over discharge

5

3.000±0.100V

Release voltage

6

3.000±0.100V

Detection delay time

7

2.10～6.00A

Over current

Over discharge current

8

≤20mS

delay time

9

≤50uS

Short detection delay time

Short circuit protection

10

Cut off load

Release Conditions

11

Max 6.00uA

Normal current consumption of PCM

0V charger

12

NO

allowed 0V change

13

2.00A

max continuous charge/discharge current

Suggest working conditions

14

-20℃～60℃

suggest working temperature

15

≤65.00 mΩ

IR of PCM

IR resistance

16

8.1550~12.273KΩ

NTC (21~29℃)/ NTC of PCM(21~29℃)

NTC resistance

17

ø18.00±0.20 mm

Size

The size of final PCM

18

MAX:2.50 mm

The thickness of final PCM

19

1)  Nothing part deflection

2)  The status of solder is all right

3) PCB will not crook

4)  Settle for LTW Module appearance standard

Appearance

20
