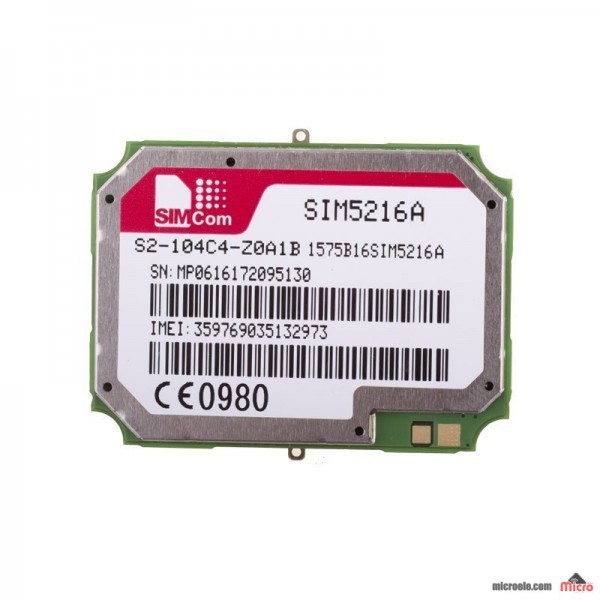

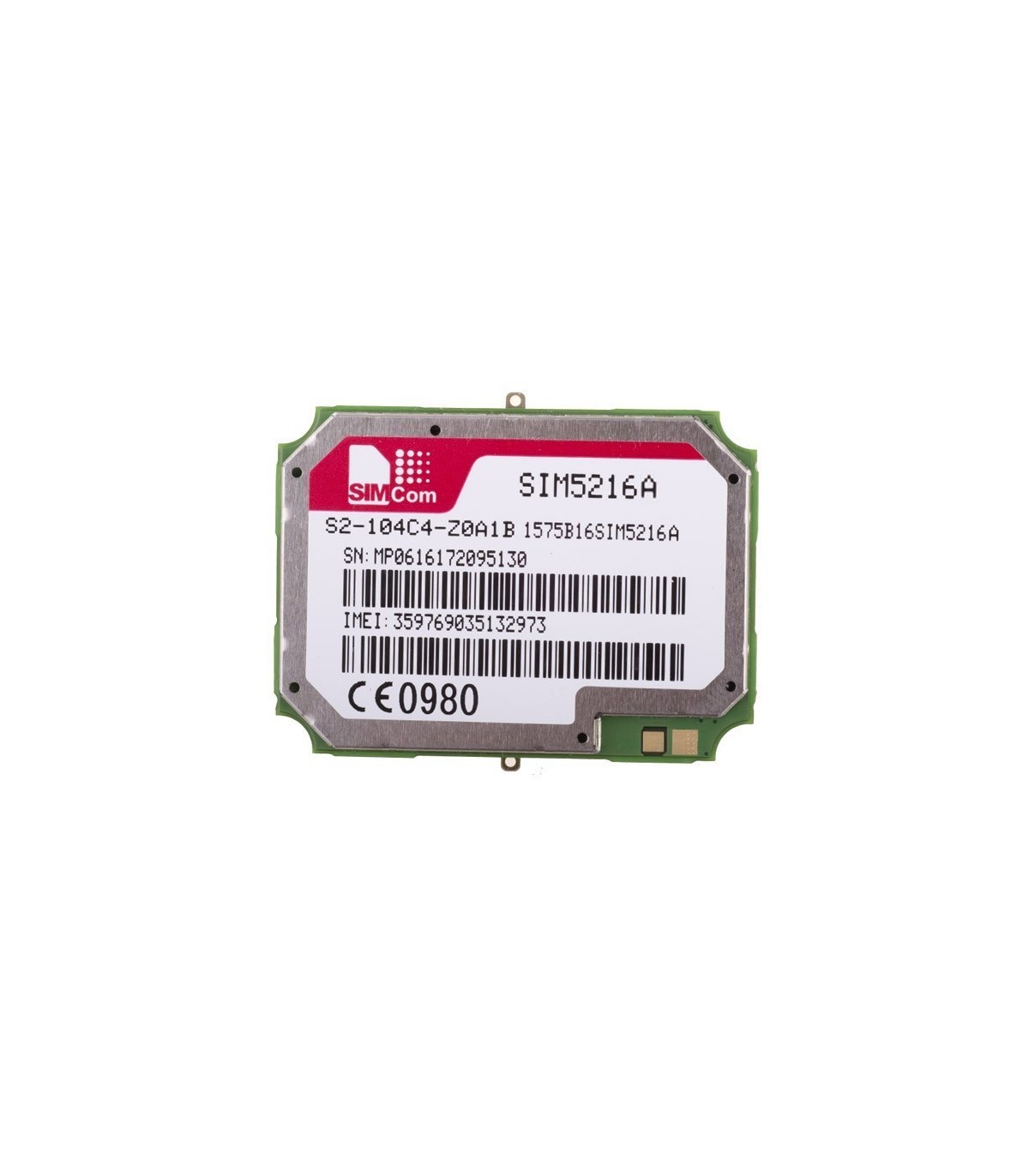

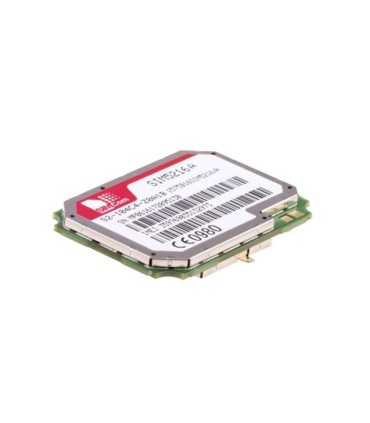

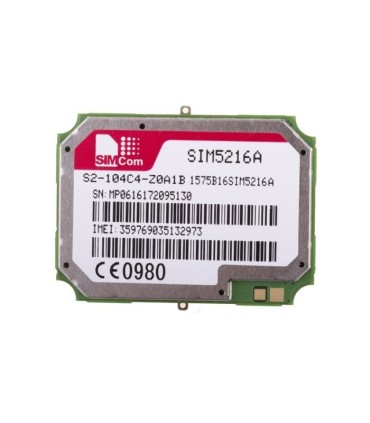

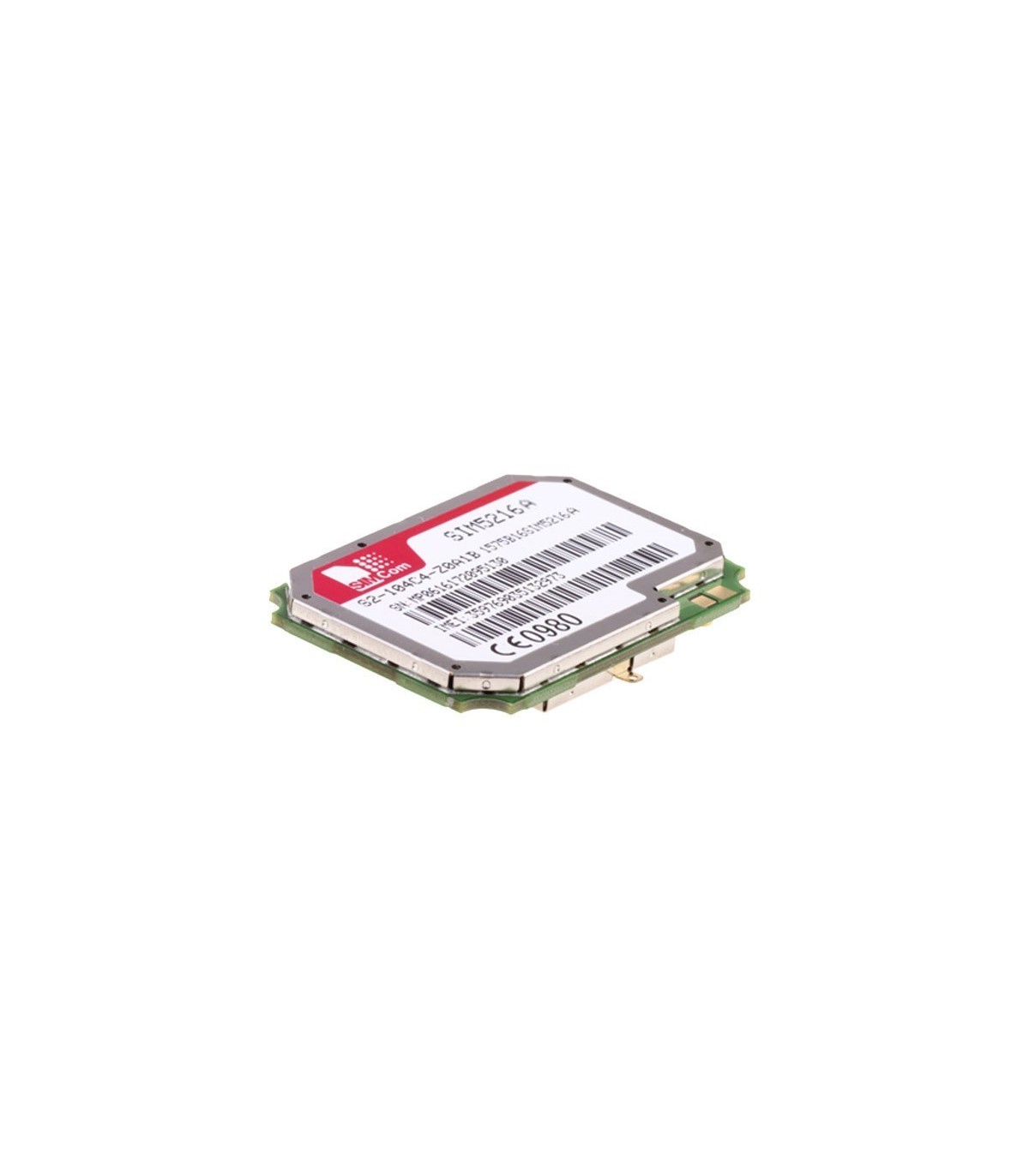

ماژول SIM5216A 3G با قابلیت HSDPA

 ماژول SIM5216 3G

مازول SIM5216A یک ماژول HSDPA/WCDMA/GSM/GPRS/EDGE  می باشد . حداکثر ولتاژ این مازول 4.2 ولت وحداکثر جریان مصرفی ان 2 امپر می باشد .

این ماژول به همراه کانکتور مخصوص خود ارایه می شود

The SIM5216 series is Multi-Band HSDPA/WCDMA/GSM/GPRS/EDGE module solution which supports HSDPA up to 3.6Mbps for downlink data transfer. With abundant application capability like embedded LUA script, TCP/UDP/FTP/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer’s application. Its unique camera/video call feature shall add value to security solutions. It is ideal for a wide range of products including AMR, Gateway, Telematics, Tracking solution, Security solution and much more.

Dual-Band UMTS/HSDPA 900/2100MHz

Tri-Band GSM/GPRS/EDGE 850/900/1800MHz

GPRS multi-slot class 12

EDGE multi-slot Class 12

WCDMA 3GPP release 5

Control Via AT Commands

USB Driver for Microsoft Windows 2000/XP/Vista

USB Driver for Linux 2.6.16

Firmware update via USB

Specifications

Application resourcesAT commands

Type of productEmbedded module

TechnologyGSM, GPRS, EDGE, 3G, HSPA

MountingB2B connector

Digital interfaceUART, USB 2.0

Antenna interfaceU.FL connector

SIM interfaceExternal

Model No: SIM5216A

Category: 3G Module

Manufacturer: Simcom

Form Factor: Board-to-Board Connector

Dimensions: 36 x 26 x 4.7 mm

Technologies: GSM,GPRS(Class 12),EDGE,UMTS,HSDPA

Dload Speed: 3.6 Mbps

Upload Speed: 384 kbps

Freq bands:

GPRS/EDGE850/900/1800 MHz

WCDMA900/2100 MHz

Temperature: -30 º C to 80 º C

Certifications: CE, GCF, RoHS

Interfaces: UART, GPIOs, ADC/DAC, USB, SPI, I2C

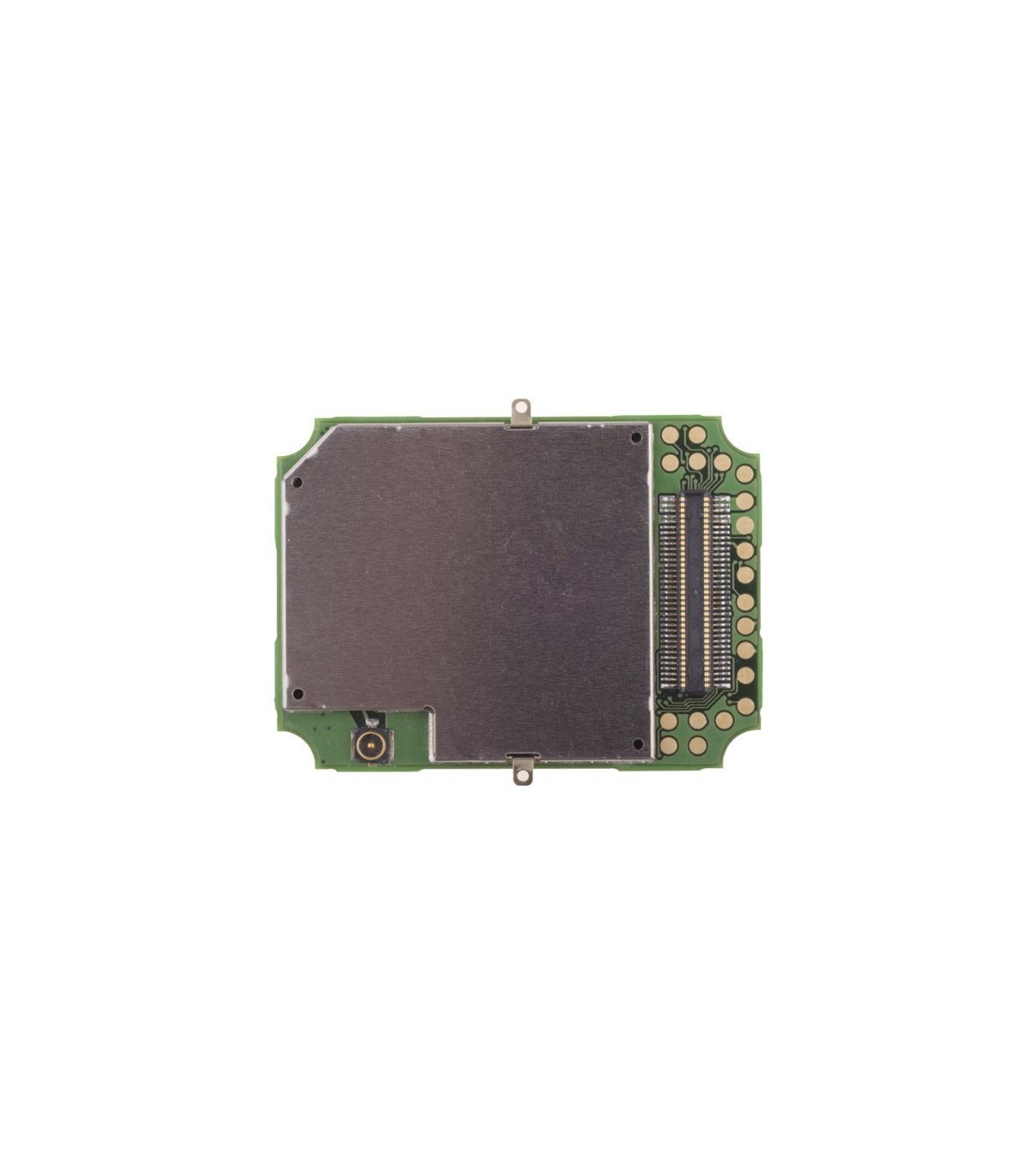

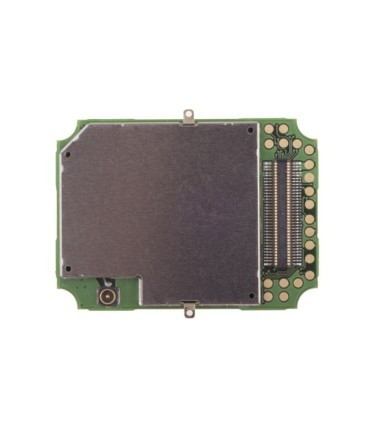

این ماژول دارای دو نوع کانکتور انتن روی خود مازول هست

PIN FUNCTION:
