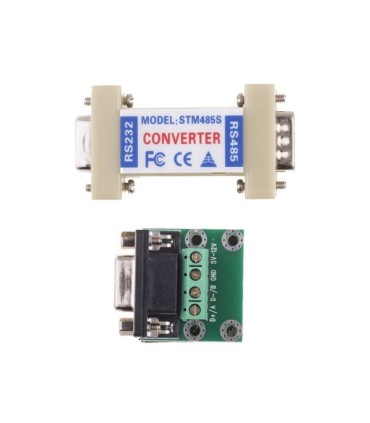

مبدل RS232 TO RS485

مبدل  RS232 TO RS485

مبدل ارتباط RS232 به ارتباط صنعتی RS485 با ورودی DB9

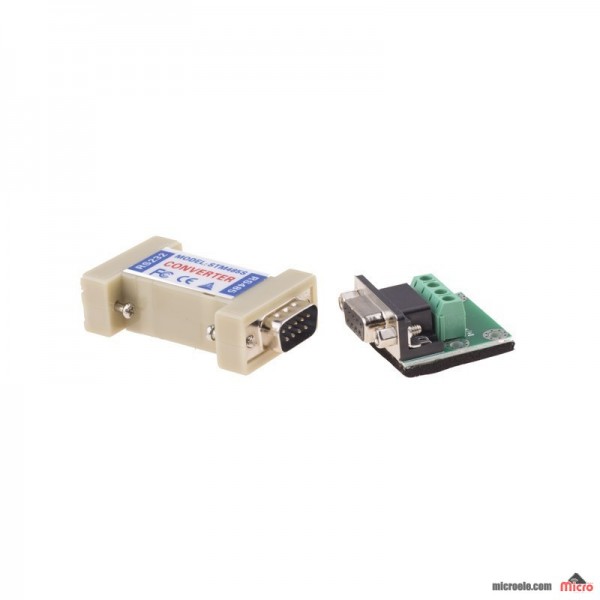

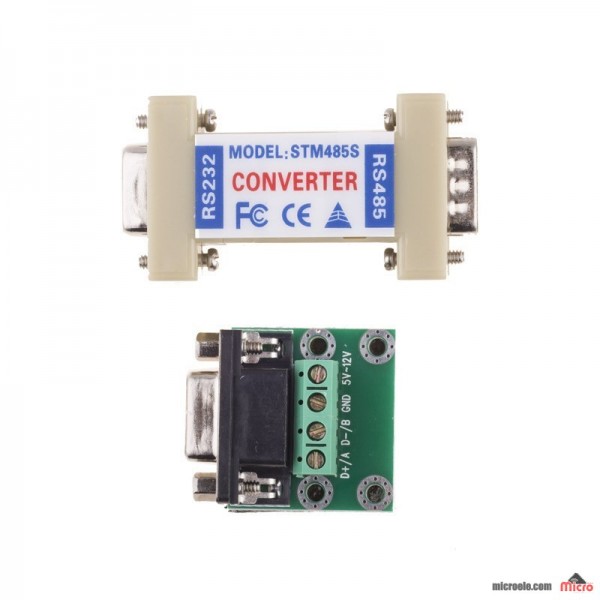

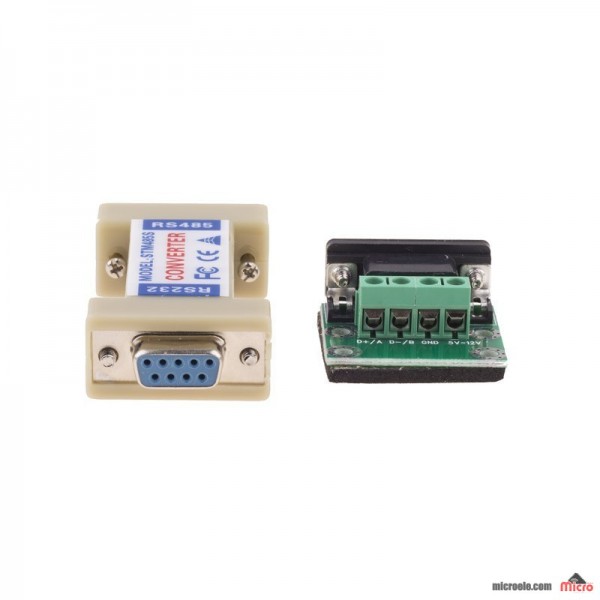

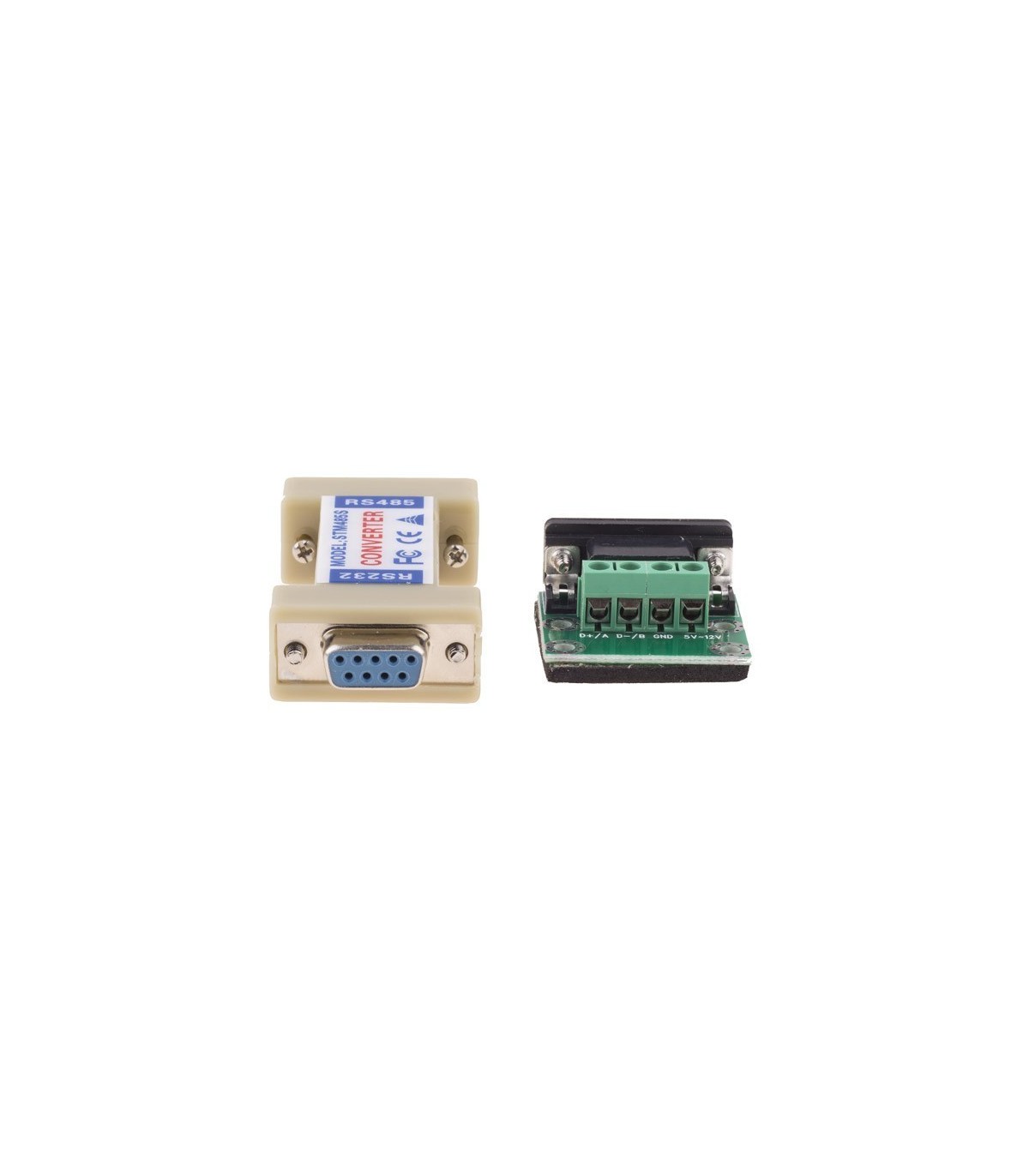

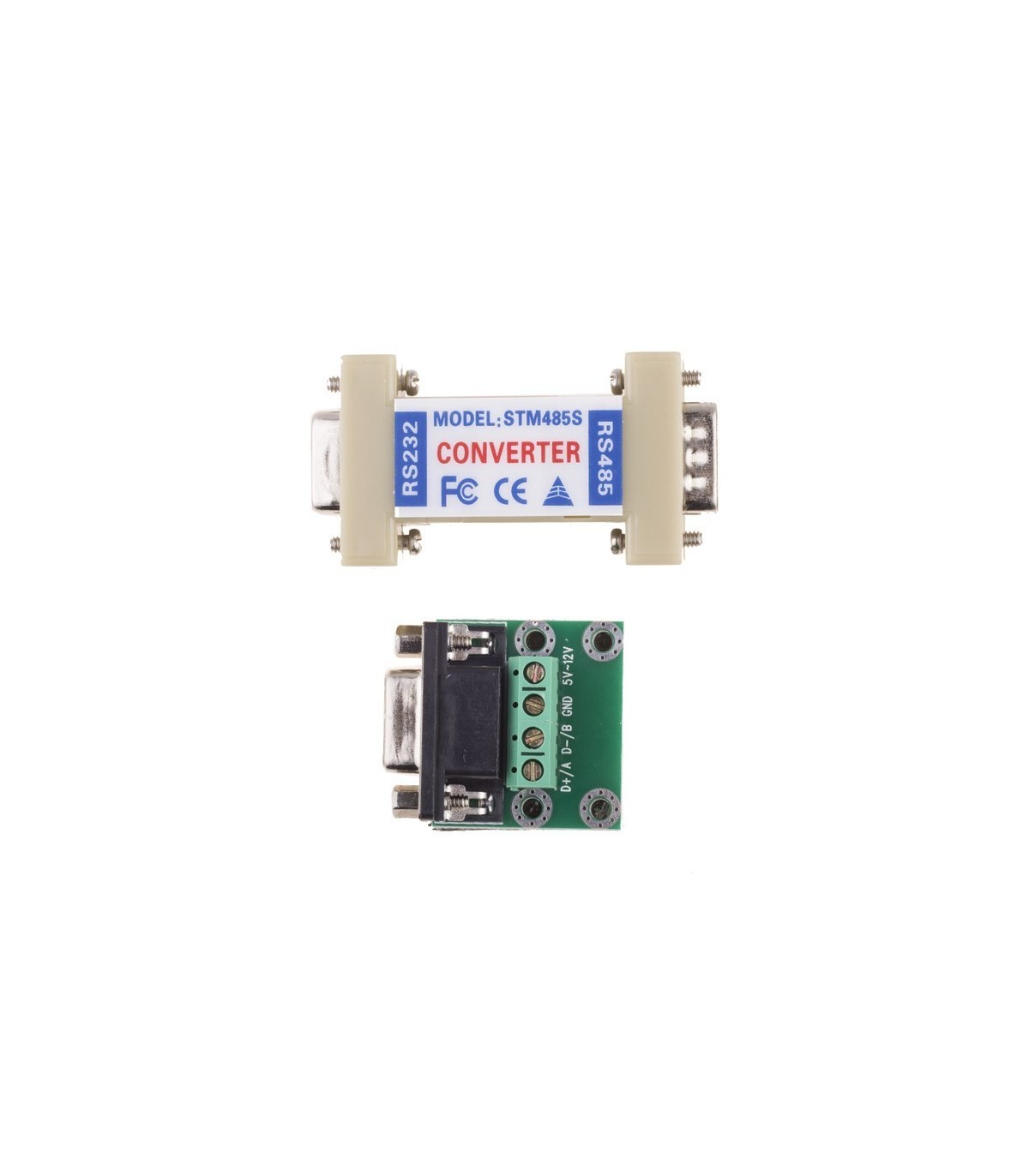

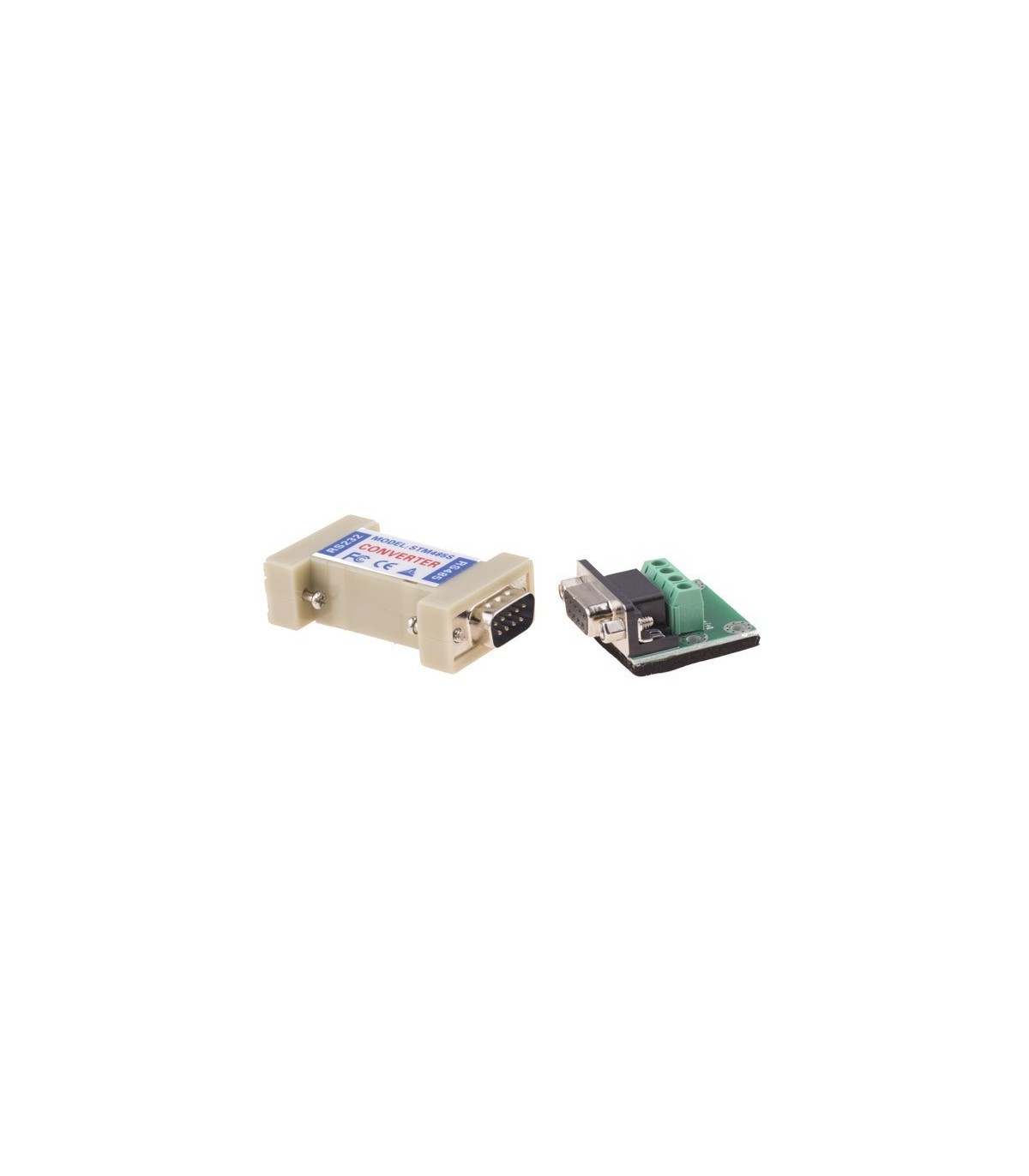

RS-232 RS232 to RS-485 RS485 Serial Converter Adapter

Description:
High Quality
Compatibility: EIA/TIA RS232C standard and RS485 ,RS422 standard.
Interface RS232 side: DB9 female connector.
Interface RS485/RS422 side: DB9 male connector with optional (included) terminal board.
Support Passive mode (Without Power) and Action mode (Power Mode).
RX, TX signal on RS232 pin 2 and pin 3.
Suitable for video surveillance system, control Pan and Tilt Cameras for PTZ decoder box, IC card system.
Working mode: asynchronous, half-duplex or full-duplex, differential transmission.
Transmmision media: common wire, doule wire or UTP or Shielding Line.
Transmission rate: 300 - 115200bps.
Transmission distance: RS485 or RS422 max. 1200m, RS232 side max. 5m
No power required
Package included :
1 X RS-232 RS232 to RS-485 RS485 Serial Converter Adapter
