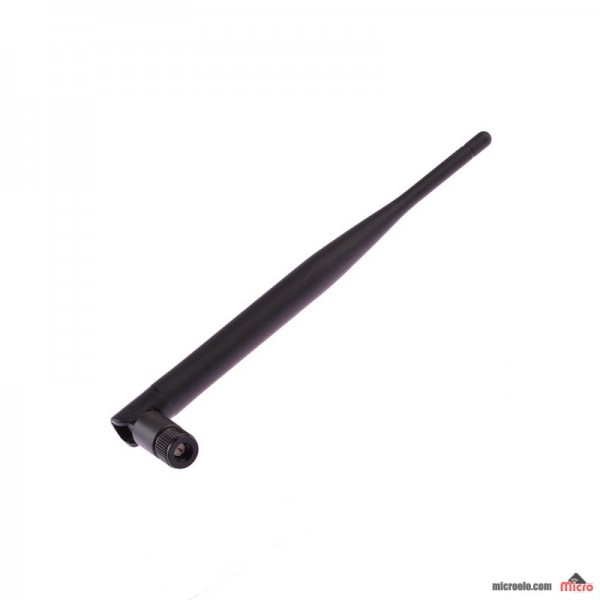

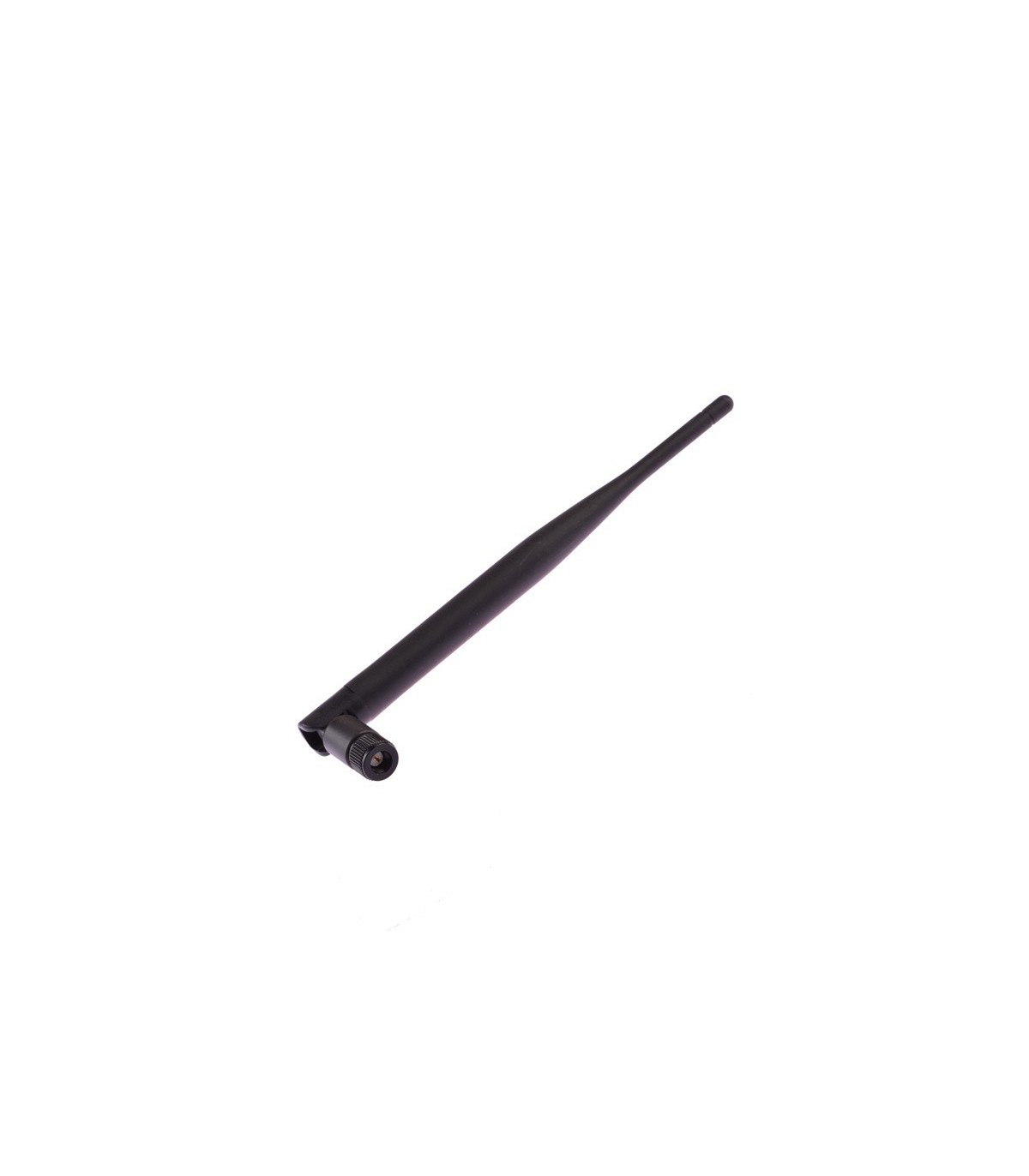

آنتن 433.92MHz بلند تاشو

1.　Dimension（Unit：mm）

　　　　　　　　　　　　　

2.　Electrical Characteristics

2.1  Dielectric Antenna

Form 1

2.2  Mechanical

Form 2

3.　Reliability
       Condition：Temperature: 40±5℃
　　   　　　      Load: DC=5V±0.5 V
　　　   　　　  Quantity: 2000pcs
　　　　   　　  Sustained Time: 480h

4.　Environmental Specifications
       Condition：Post Environmental Tolerance (Refer to the form 1)
　　　　　　     Temperature Range 25±3℃
　　　　　　     Relative Humidity Range 55~75%RH
　　　　　　     Operating Temperature Range -40℃~+85℃
　　　　　　     Storage Temperature Range -40℃~+100℃
4.1  Moisture Proof
　　The device should satisfy the electrical characteristics specified in form 1 after exposed to the temperature 40±2℃ and the relative humidity 90~95% RH for 96 hours and 1~2 hours recovery time under normal condition.
4.2  Vibration Resist
　　The device should satisfy the electrical characteristics specified in form 1 after applied to the vibration of 10 to 55Hz with amplitude of 1.5mm for 2 hours each in X, Y and Z directions.
4.3  Drop Shock
　　The device should satisfy the electrical characteristics specified in form 1 after dropping onto the hard wooden board from the height of 30cm for 3 times each facet of the 3 dimensions of the device.
4.4  High Temperature Endurance
　　The device should satisfy the electrical characteristics specified in form 1 after exposed to temperature 80±5℃ for 24±2 hours and 1~2 hours recovery time under normal temperature.
4.5  Low Temperature Endurance
　　The device should also satisfy the electrical characteristics specified in form 1 after exposed to the temperature -40℃±5℃ for 24±2 hours and to 2 hours recovery time under normal temperature.
4.6  Temperature Cycle Test
　　The device should also satisfy the electrical characteristics specified in form 1 after exposed to the low temperature -25℃ and high temperature +85℃ for 30±2 min each by 5 cycles and 1 to 2 hours recovery time under normal temperature.
