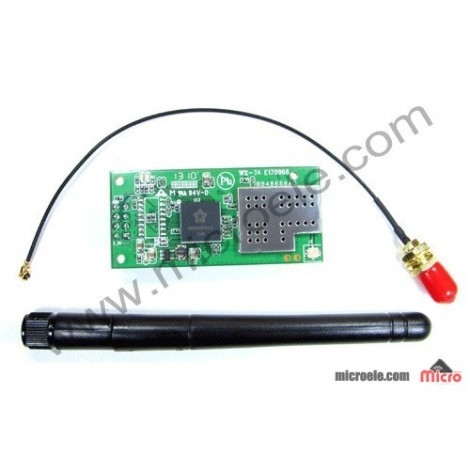

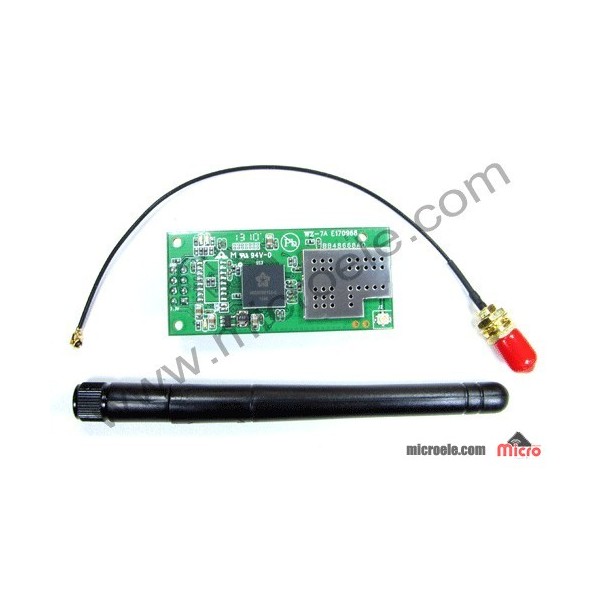

این محصول به همراه آنتن و کانکتور رابط ارایه می شود

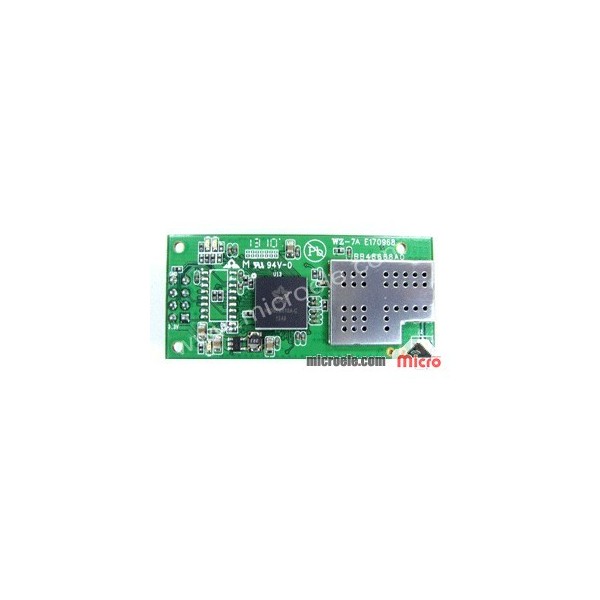

WIFI-WLE-WIUART03 یک ماژول wifi  با اینترفیس UART می باشد .ولتاژ کاری ماژول 3.3 ولت می باشد.

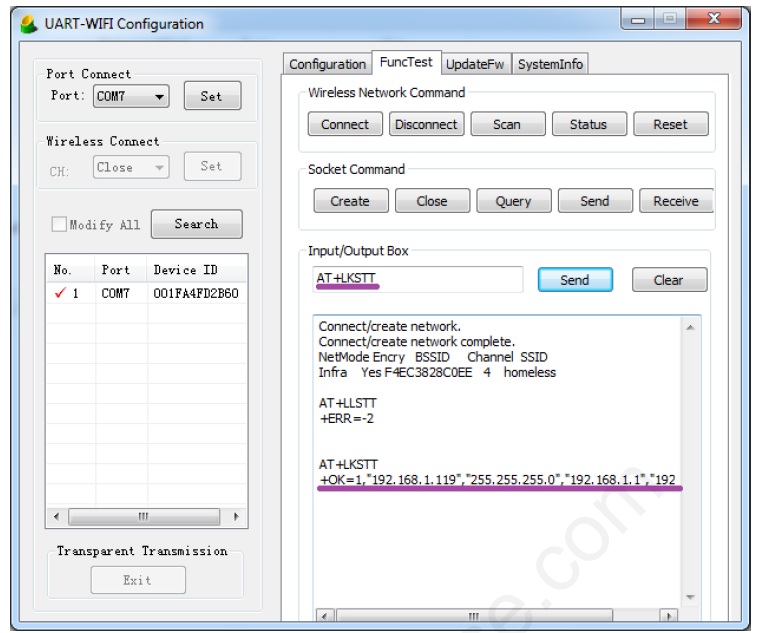

با استفاده از نرم افزار UART-WIFI.exe و AT command  های مخصوص به راحتی قابل راه اندازی می باشد.

Summarize

TLG10UA03 is a new embedded Uart-Wifi modules supplied by elechouse.

Uart-Wif is an embedded module based on the Uart serial,according with the WiFi wireless WLAN standards, It accords with IEEE802.11 protocol stack and TCP / IP protocol stackand it enables the data conversion between the user serial and the wireless network module. through the Uart-Wifi module, the traditional serial devices can easily access to the wireless network.

TLG10UA03 does a comprehensive hardware and software upgrades based on the products of the first two generations, now it’s more functional and more convenient to use,its main features include:



·          Support transparent transmission of serial completely,and achieve a plug and play serial

·          Support new AT+instruction set, Which is all based on ASCII format, it’s simple to use and pellucid.

·          Support more perfect TCP/IP protocol tack, support DHCP protocol for dynamicassignation of IP address and DNS domain name parsing.

·          Embed WEB server, and achieve the long-range parameters configuration through wireless network with IE browser.

·          Support more prefect transmission performance,the maximum sending rate can reach to 11KB/s.

Characteristic

Interface

·          2*4 pins of Interface: HDR254M-2X4

·          The range of baud rate: 1200~ 115200bps

·          RTS/CTS Hardware flow control

·          Single 3.3V power supply

Wireless

·          Support IEEE802.11b/g wireless standards

·          Support the range of frequency: 2.412~2.484 GHz

·          Support two types of wireless networks: Ad hoc and Infrastructure

·          Support multiple security authentication mechanisms: WEP64/WEP128/TKIP/CCMP(AES)WEP/WPA-PSK/WPA2-PSK

·          Support quick networking

·          Support wireless roam

Others

·          Support multiple network protocols:

·          TCP/UDP/ICMP/DHCP/DNS/HTTP

·          Support two types of work modes: auto and command

·          Support transparent transmission mode

·          Support AT+ instruction set

·          Support a variety of parameters configuration methods: serial/WEB server/wireless connection Application

·          Intelligent bus network, such as wireless credit card machine

·          Small financial payment network, such as wireless POS machine

Download

·          Manual

·          WiFi software

·          Test File
